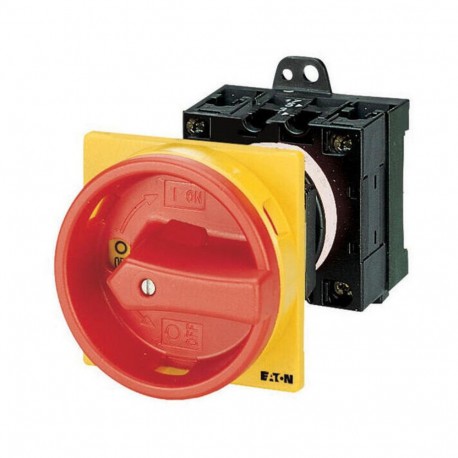

EATON - MOELLER T0-3-12/V/SVB T0-3-12/V/SVB 012271 Y7-12271 EATON ELECTRIC Main switch, 3 pole, 20 A, Emergency-Stop function, 90 °, rear .. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T0-3-12/V/SVB 012271 Y7-12271 EATON ELECTRIC Main switch, 3 pole, 20 A, Emergency-Stop function, 90 °, rear ..

T0-3-12/V/SVB

012271

Y7-12271

EATON - MOELLER

1 Pcs.

Main switch, 3 pole, 20 A, Emergency-Stop function, 90 °, rear mounting General switch; 3-pole; 20 In; Handle Red/Yellow Lockable in position (OFF); 90 °; Mounting bottom panel Eaton Moeller® series T0 Main switch, T0, 20 A, rear mounting, 3 contact unit(s), 3 pole, Emergency switching off function, With red rotary handle and yellow locking ring Main switch, Product range: Main switch, maintenance switch, Repair switch, Part group reference: T0, Stop Function: Emergency switching off function, With red rotary handle and yellow locking ring, 3 pole, Degree of Protection: Front IP65, Design: rear mounting, Switching angle: 90 °, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 5.5 kW, Rated uninterrupted current: Iu = 20 A, 3 contact unit(s), Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, UL, Switch-disconnector according to IEC/EN 60947-3

Connectors > Switch disconnector
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

T0-3-12/V/SVB from Eaton Moeller functions as a main switch with an integrated emergency-stop capability designed for rear mounting. Operators rely on such disconnect mechanisms to safely cut off electrical feeds to industrial automation hardware during routine servicing. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Version as main switch (EF006981): Yes
  • Version as maintenance-/service switch (EF006986): Yes
  • Version as safety switch (EF006985): No
  • Version as emergency stop installation (EF006959): Yes
  • Version as reversing switch (EF009408): No
  • Number of switches (EF005586): 1
  • Max. rated operation voltage Ue AC (EF007355): 690 V
  • Rated operating voltage (EF001435): 690 V
  • Rated permanent current Iu (EF001389): 20 A
  • Rated permanent current at AC-21, 400 V (EF009165): 20 A
  • Rated operation power at AC-3, 400 V (EF001364): 5.5 kW
  • Rated short-time withstand current lcw (EF007050): 0.32 kA
  • Rated operation power at AC-23, 400 V (EF007027): 5.5 kW
  • Switching power at 400 V (EF009166): 5.5 kW
  • Conditioned rated short-circuit current Iq (EF001444): 6 kA
  • Number of poles (EF001391): 3

More info

▲

General specifications

Product Name
Eaton Moeller® series T0 Main switch
Catalog Number
012271
Model Code
T0-3-12/V/SVB
EAN
4015080122715
Product Length/Depth
137 mm
Product Height
74 mm
Product Width
65 mm
Product Weight
0.158 kg
Certifications
UL 60947-4-1
UL File No.: E36332
VDE 0660
UL
UL Category Control No.: NLRV
CE
CSA File No.: 012528
CSA-C22.2 No. 60947-4-1-14
CSA
IEC/EN 60204
IEC/EN 60947-3
CSA-C22.2 No. 94
CSA Class No.: 3211-05
IEC/EN 60947
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second
