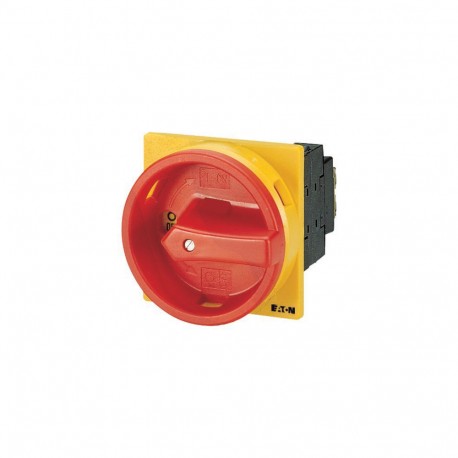

T0-3-12/EA/SVB 012263 Y7-12263 EATON ELECTRIC Main switch, 3 pole, 20 A, Emergency-Stop function, 90 °, flus..
T0-3-12/EA/SVB
012263
Y7-12263
EATON - MOELLER
1 Pcs.
Connectors > Switch disconnector
Disconnectors and Cam Switches
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
The T0-3-12/EA/SVB 012263 Y7-12263 EATON ELECTRIC Main switch is a rotary control device deployed to safely disconnect power to machinery and control panels. Such switches serve as essential safety devices in manufacturing environments to prevent accidental startup and handle emergency stop procedures. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Version as main switch (EF006981): Yes
- Version as maintenance-/service switch (EF006986): Yes
- Version as safety switch (EF006985): No
- Version as emergency stop installation (EF006959): Yes
- Version as reversing switch (EF009408): No
- Number of switches (EF005586): 1
- Max. rated operation voltage Ue AC (EF007355): 690 V
- Rated operating voltage (EF001435): 690 V
- Rated permanent current Iu (EF001389): 20 A
- Rated permanent current at AC-21, 400 V (EF009165): 20 A
- Rated operation power at AC-3, 400 V (EF001364): 5.5 kW
- Rated short-time withstand current lcw (EF007050): 0.32 kA
- Rated operation power at AC-23, 400 V (EF007027): 5.5 kW
- Switching power at 400 V (EF009166): 5.5 kW
- Conditioned rated short-circuit current Iq (EF001444): 6 kA
- Number of poles (EF001391): 3
More info
▲General specifications
CSA Class No.: 3211-05
CSA
IEC/EN 60947
IEC/EN 60204
UL 60947-4-1
CE
UL
CSA-C22.2 No. 60947-4-1-14
IEC/EN 60947-3
UL Category Control No.: NLRV
CSA File No.: 012528
UL File No.: E36332
CSA-C22.2 No. 94
