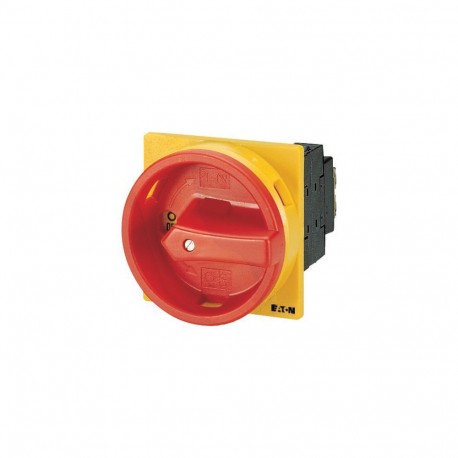

T0-3-15259/EA/SVB 008128 Y7-8128 EATON ELECTRIC Main switch, 3 pole + 2 N/O, 20 A, Emergency-Stop function, ..
T0-3-15259/EA/SVB
008128
Y7-8128
EATON - MOELLER
1 Pcs.
Connectors > Switch disconnector
Disconnectors and Cam Switches
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An Eaton Moeller T0-3-15259/EA/SVB Main switch, 3 pole + 2 N/O, 20 A, Emergency-Stop function, .. functions as a primary disconnecting device to safely interrupt power to industrial machinery and control panels. These switches provide reliable manual switching capabilities for motor control and safety isolation across various automated systems.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Version as main switch (EF006981): Yes
- Version as maintenance-/service switch (EF006986): Yes
- Version as safety switch (EF006985): No
- Version as emergency stop installation (EF006959): Yes
- Version as reversing switch (EF009408): No
- Number of switches (EF005586): 1
- Max. rated operation voltage Ue AC (EF007355): 690 V
- Rated operating voltage (EF001435): 690 V
- Rated permanent current Iu (EF001389): 20 A
- Rated permanent current at AC-21, 400 V (EF009165): 20 A
- Rated operation power at AC-3, 400 V (EF001364): 5.5 kW
- Rated short-time withstand current lcw (EF007050): 0.32 kA
- Rated operation power at AC-23, 400 V (EF007027): 5.5 kW
- Switching power at 400 V (EF009166): 5.5 kW
- Conditioned rated short-circuit current Iq (EF001444): 6 kA
- Number of poles (EF001391): 3
More info
▲General specifications
CSA Class No.: 3211-05
IEC/EN 60947-3
VDE 0660
CSA
IEC/EN 60947
UL
UL 60947-4-1
UL Category Control No.: NLRV
CSA File No.: 012528
IEC/EN 60204
CSA-C22.2 No. 60947-4-1-14
UL File No.: E36332
CSA-C22.2 No. 94
