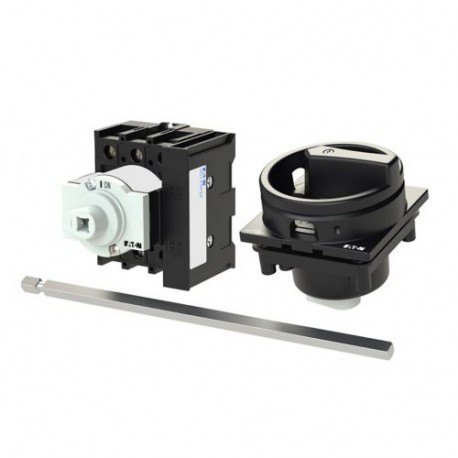

P1-25/M4/SVB-SW/HI11 172768 Y7-172768 EATON ELECTRIC Main switch, 3 pole + 1 N/O + 1 N/C, 25 A, STOP functio..
P1-25/M4/SVB-SW/HI11
172768
Y7-172768
EATON - MOELLER
1 Pcs.
Connectors > Switch disconnector
Disconnectors and Cam Switches
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Eaton Moeller P1-25/M4/SVB-SW/HI11 is a main switch utilized in industrial electrical control panels to safely isolate circuits during maintenance or emergency situations. These components provide reliable manual disconnection for machinery and power distribution networks.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Version as main switch (EF006981): Yes
- Version as maintenance-/service switch (EF006986): Yes
- Version as safety switch (EF006985): No
- Version as emergency stop installation (EF006959): No
- Version as reversing switch (EF009408): No
- Number of switches (EF005586): 1
- Max. rated operation voltage Ue AC (EF007355): 690 V
- Rated operating voltage (EF001435): 690 V
- Rated permanent current Iu (EF001389): 25 A
- Rated permanent current at AC-23, 400 V (EF011777): 25 A
- Rated permanent current at AC-21, 400 V (EF009165): 25 A
- Rated operation power at AC-3, 400 V (EF001364): 7.5 kW
- Rated short-time withstand current lcw (EF007050): 0.64 kA
- Rated operation power at AC-23, 400 V (EF007027): 13 kW
- Switching power at 400 V (EF009166): 13 kW
- Conditioned rated short-circuit current Iq (EF001444): 80 kA
More info
▲General specifications
UL 60947-4-1
UL Category Control No.: NLRV
CSA-C22.2 No. 94
UL
VDE 0660
CSA File No.: 012528
IEC/EN 60947-3
CSA
IEC/EN 60947
CSA Class No.: 3211-05
UL File No.: E36332
IEC/EN 60204
CSA-C22.2 No. 60947-4-1-14
