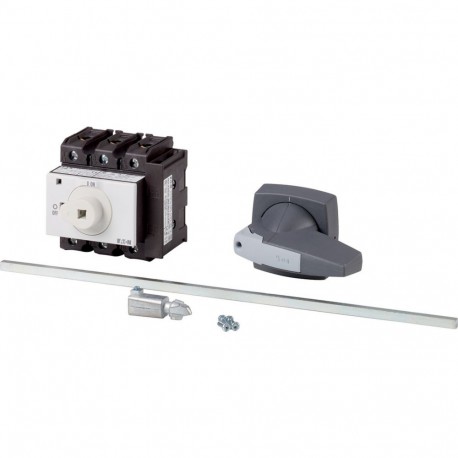

P3-100/M4/K2-PG/HI11 172831 Y7-172831 EATON ELECTRIC Main switch, 3 pole + 1 N/O + 1 N/C, 100 A, Emergency s..
P3-100/M4/K2-PG/HI11
172831
Y7-172831
EATON - MOELLER
1 Pcs.
Connectors > Switch disconnector
Disconnectors and Cam Switches
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Main switch P3-100/M4/K2-PG/HI11 by Eaton Moeller is engineered for secure power isolation in heavy-duty industrial environments. Main switches serve as the primary disconnect point for machinery, ensuring compliance with safety standards by cutting off electrical supply prior to maintenance.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Version as main switch (EF006981): Yes
- Version as maintenance-/service switch (EF006986): Yes
- Version as safety switch (EF006985): No
- Version as emergency stop installation (EF006959): No
- Version as reversing switch (EF009408): No
- Number of switches (EF005586): 1
- Max. rated operation voltage Ue AC (EF007355): 690 V
- Rated operating voltage (EF001435): 690 V
- Rated permanent current Iu (EF001389): 100 A
- Rated permanent current at AC-23, 400 V (EF011777): 100 A
- Rated permanent current at AC-21, 400 V (EF009165): 100 A
- Rated operation power at AC-3, 400 V (EF001364): 37 kW
- Rated short-time withstand current lcw (EF007050): 2 kA
- Rated operation power at AC-23, 400 V (EF007027): 55 kW
- Switching power at 400 V (EF009166): 55 kW
- Conditioned rated short-circuit current Iq (EF001444): 80 kA
More info
▲General specifications
VDE 0660
IEC/EN 60204
IEC/EN 60947
