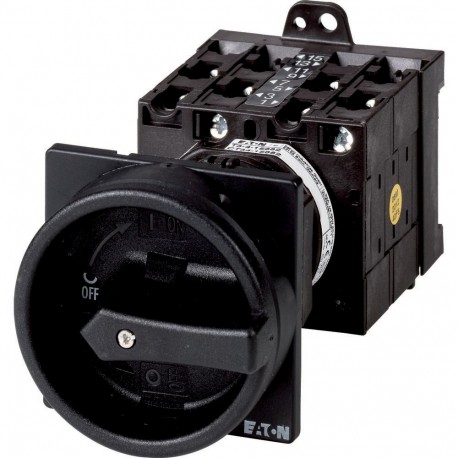

EATON - MOELLER T3-1-102/V/SVB-SW T3-1-102/V/SVB-SW 021493 Y7-21493 EATON ELECTRIC Main switch, 2 pole, 32 A, STOP function, 90 °, Lockable in.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T3-1-102/V/SVB-SW 021493 Y7-21493 EATON ELECTRIC Main switch, 2 pole, 32 A, STOP function, 90 °, Lockable in..

T3-1-102/V/SVB-SW

021493

Y7-21493

EATON - MOELLER

1 Pcs.

Main switch, 2 pole, 32 A, STOP function, 90 °, Lockable in the 0 (Off) position, rear mounting General Switch 2 poles 32 A 90° Bottom Panel Mount Handle Eaton Moeller® series T3 Main switch, T3, 32 A, rear mounting, 1 contact unit(s), 2 pole, STOP function, With black rotary handle and locking ring, Lockable in the 0 (Off) position Main switch, Product range: Main switch, maintenance switch, Repair switch, Part group reference: T3, Stop Function: STOP function, With black rotary handle and locking ring, 2 pole, Locking facility: Lockable in the 0 (Off) position, Degree of Protection: Front IP65, Design: rear mounting, Switching angle: 90 °, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 15 kW, Rated uninterrupted current: Iu = 32 A, 1 contact unit(s), Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, UL, Switch-disconnector according to IEC/EN 60947-3

Connectors > Switch disconnector
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Eaton Moeller T3-1-102/V/SVB-SW is a robust main switch configured to interrupt electrical power securely within commercial and industrial machinery installations. These rotary control devices are integral for stopping motor operations and isolating subsystems during routine inspections.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Version as main switch (EF006981): Yes
  • Version as maintenance-/service switch (EF006986): Yes
  • Version as safety switch (EF006985): No
  • Version as emergency stop installation (EF006959): No
  • Version as reversing switch (EF009408): No
  • Number of switches (EF005586): 1
  • Rated operating voltage (EF001435): 690 V
  • Rated permanent current Iu (EF001389): 32 A
  • Rated permanent current at AC-21, 400 V (EF009165): 32 A
  • Rated operation power at AC-3, 400 V (EF001364): 11 kW
  • Rated short-time withstand current lcw (EF007050): 0.65 kA
  • Rated operation power at AC-23, 400 V (EF007027): 15 kW
  • Switching power at 400 V (EF009166): 15 kW
  • Conditioned rated short-circuit current Iq (EF001444): 1 kA
  • Number of poles (EF001391): 2
  • Motor drive optional (EF007386): No

More info

▲

General specifications

Product Name
Eaton Moeller® series T3 Main switch
Catalog Number
021493
Model Code
T3-1-102/V/SVB-SW
EAN
4015080214939
Product Length/Depth
121 mm
Product Height
74 mm
Product Width
65 mm
Product Weight
0.197 kg
Certifications
CSA
CSA File No.: 012528
CSA-C22.2 No. 94
IEC/EN 60204
UL File No.: E36332
CE
VDE 0660
IEC/EN 60947-3
UL
UL 60947-4-1
CSA-C22.2 No. 60947-4-1-14
CSA Class No.: 3211-05
IEC/EN 60947
UL Category Control No.: NLRV
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second
