View larger

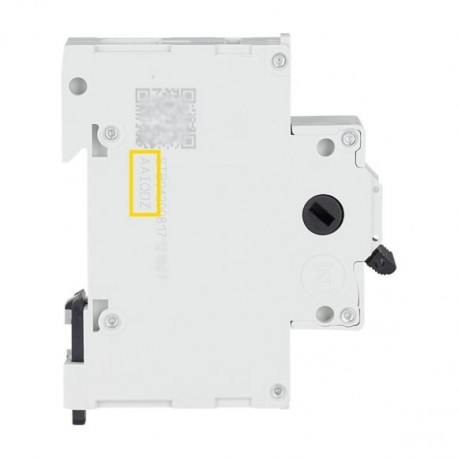

IS-80/2 276279 Y7-276279 EATON ELECTRIC Main switch, 240 V, 80A, 2HP
IS-80/2
276279
Y7-276279
EATON - MOELLER
1 Pcs.
Automation > Main switch for distribution board
Modular Switchgear – Others and Accessories
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Eaton Moeller part IS-80/2 is a main switch built to safely isolate electrical circuits and loads during maintenance or emergency procedures. Main switches provide manual control to completely disconnect power safely within distribution boards and industrial machinery setups. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Number of contacts as normally open contact (EF008256): 2
- Number of contacts as normally closed contact (EF008255): 2
- Number of contacts as change-over contact (EF008257): 0
- Number of poles (EF001391): 2
- Rated current (EF000227): 80 A
- Rated voltage (EF000228): 415 V
- Min. rated voltage (EF005025): 240 V
- Rated switching capacity (EF002563): 12.5 kA
- Short-circuit breaking capacity (Icw) (EF002562): 2 kA
- Voltage type (EF000187): AC
- With signal lamp (EF000198): No
- Max. lamp power (EF000260): 0 W
- Width in number of modular spacings (EF002950): 2
- Built-in depth (EF000218): 69.5 mm
- Degree of protection (IP) (EF005474): IP40
- Imprint/indication (EF003823): Symbol "arrows"
More info
▲General specifications
IEC 61373
Product specifications
IP10
