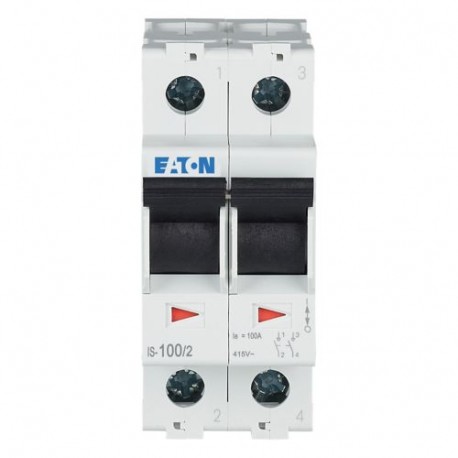

IS-100/2 276283 Y7-276283 EATON ELECTRIC Main switch, 240 V, 100A, 2HP
IS-100/2
276283
Y7-276283
EATON - MOELLER
1 Pcs.
Automation > Main switch for distribution board
Modular Switchgear – Others and Accessories
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Eaton Moeller IS-100/2 276283 Y7-276283 EATON ELECTRIC Main switch, 240 V, 100A, 2HP serves as a heavy-duty disconnect device designed to safely isolate electrical circuits and distribution boards from power sources during maintenance. Panel builders rely on such main switches to ensure safe, reliable load interruption in industrial electrical systems.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Number of contacts as normally open contact (EF008256): 0
- Number of contacts as normally closed contact (EF008255): 0
- Number of contacts as change-over contact (EF008257): 0
- Number of poles (EF001391): 2
- Rated current (EF000227): 100 A
- Rated voltage (EF000228): 415 V
- Min. rated voltage (EF005025): 240 V
- Rated switching capacity (EF002563): 0 kA
- Short-circuit breaking capacity (Icw) (EF002562): 2 kA
- Voltage type (EF000187): AC
- With signal lamp (EF000198): No
- Max. lamp power (EF000260): 0 W
- Width in number of modular spacings (EF002950): 2
- Built-in depth (EF000218): 69.5 mm
- Degree of protection (IP) (EF005474): IP40
- Imprint/indication (EF003823): Symbol "arrows"
More info
▲General specifications
IEC 61373
Product specifications
IP10
Off switch
