EATON - MOELLER T5-1-8200/EA/SVB T5-1-8200/EA/SVB 097224 Y7-97224 EATON ELECTRIC Main switch, 1 pole, 100 A, Emergency-Stop function, 90 °, f.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

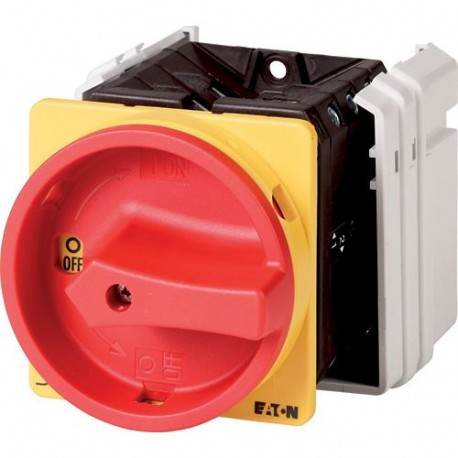

T5-1-8200/EA/SVB 097224 Y7-97224 EATON ELECTRIC Main switch, 1 pole, 100 A, Emergency-Stop function, 90 °, f..

T5-1-8200/EA/SVB

097224

Y7-97224

EATON - MOELLER

1 Pcs.

Main switch, 1 pole, 100 A, Emergency-Stop function, 90 °, flush mounting General Switch 1 Pole 100 A 90° Flush Mount Handle Main switch, T5, 100 A, flush mounting, 1 contact unit(s), 1 pole, Emergency switching off function, With red rotary handle and yellow locking ring Main switch, Product range: Main switch, maintenance switch, Repair switch, Part group reference: T5, Stop Function: Emergency switching off function, With red rotary handle and yellow locking ring, 1 pole, Degree of Protection: Front IP65, Design: flush mounting, Switching angle: 90 °, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 55 kW, Rated uninterrupted current: Iu = 100 A, 1 contact unit(s), Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, Switch-disconnector according to IEC/EN 60947-3

Connectors > Switch disconnector
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Eaton Moeller main switch, catalog number T5-1-8200/EA/SVB, featuring an integrated emergency-stop function and single-pole architecture.

Main switches serve as the primary disconnecting device for industrial machinery, allowing safe total power isolation during servicing or fault conditions. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Version as main switch (EF006981): Yes
  • Version as maintenance-/service switch (EF006986): Yes
  • Version as safety switch (EF006985): No
  • Version as emergency stop installation (EF006959): Yes
  • Version as reversing switch (EF009408): No
  • Number of switches (EF005586): 1
  • Rated operating voltage (EF001435): 690 V
  • Rated permanent current Iu (EF001389): 100 A
  • Rated permanent current at AC-21, 400 V (EF009165): 100 A
  • Rated operation power at AC-3, 400 V (EF001364): 30 kW
  • Rated short-time withstand current lcw (EF007050): 1.7 kA
  • Rated operation power at AC-23, 400 V (EF007027): 55 kW
  • Switching power at 400 V (EF009166): 55 kW
  • Conditioned rated short-circuit current Iq (EF001444): 2 kA
  • Number of poles (EF001391): 1
  • Motor drive optional (EF007386): No

More info

▲

General specifications

Product Name
Eaton Moeller® series T5 Main switch
Catalog Number
097224
Model Code
T5-1-8200/EA/SVB
EAN
4015080972242
Product Length/Depth
123 mm
Product Height
88 mm
Product Width
88 mm
Product Weight
0.47 kg
Certifications
IEC/EN 60947-3
IEC/EN 60947
VDE 0660
IEC/EN 60204
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
