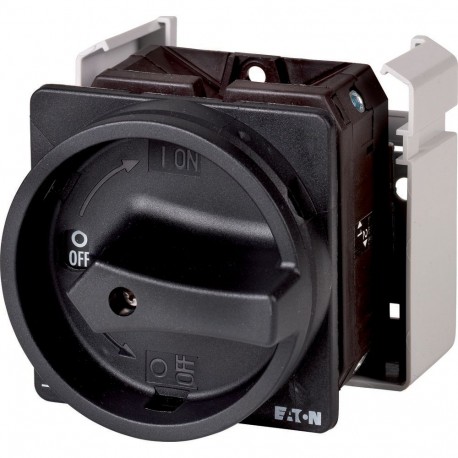

EATON - MOELLER T5B-1-8200/EA/SVB-SW T5B-1-8200/EA/SVB-SW 094278 Y7-94278 EATON ELECTRIC Main switch, 1 pole, 63 A, STOP function, 90 °, Lockable.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T5B-1-8200/EA/SVB-SW 094278 Y7-94278 EATON ELECTRIC Main switch, 1 pole, 63 A, STOP function, 90 °, Lockable..

T5B-1-8200/EA/SVB-SW

094278

Y7-94278

EATON - MOELLER

1 Pcs.

Main switch, 1 pole, 63 A, STOP function, 90 °, Lockable in the 0 (Off) position, flush mounting General Switch 1 pole 63 A 90° Flush Mount Black Handle Eaton Moeller® series T5B Main switch, T5B, 63 A, flush mounting, 1 contact unit(s), 1 pole, STOP function, With black rotary handle and locking ring, Lockable in the 0 (Off) position Main switch, Product range: Main switch, maintenance switch, Repair switch, Part group reference: T5B, Stop Function: STOP function, With black rotary handle and locking ring, 1 pole, Locking facility: Lockable in the 0 (Off) position, Degree of Protection: Front IP65, Design: flush mounting, Switching angle: 90 °, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 30 kW, Rated uninterrupted current: Iu = 63 A, 1 contact unit(s), Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, UL, Switch-disconnector according to IEC/EN 60947-3

Connectors > Switch disconnector
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Designed for secure power interruption, the Eaton Moeller T5B-1-8200/EA/SVB-SW 094278 Y7-94278 EATON ELECTRIC Main switch, 1 pole, 63 A, STOP function, 90 °, Lockable functions as a heavy-duty control device for industrial equipment. Technicians use these components to isolate electrical feeds during servicing, preventing accidental startup and enhancing workplace safety.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Version as main switch (EF006981): Yes
  • Version as maintenance-/service switch (EF006986): Yes
  • Version as safety switch (EF006985): No
  • Version as emergency stop installation (EF006959): No
  • Version as reversing switch (EF009408): No
  • Number of switches (EF005586): 1
  • Rated operating voltage (EF001435): 690 V
  • Rated permanent current Iu (EF001389): 63 A
  • Rated permanent current at AC-21, 400 V (EF009165): 63 A
  • Rated operation power at AC-3, 400 V (EF001364): 22 kW
  • Rated short-time withstand current lcw (EF007050): 1.3 kA
  • Rated operation power at AC-23, 400 V (EF007027): 30 kW
  • Switching power at 400 V (EF009166): 30 kW
  • Conditioned rated short-circuit current Iq (EF001444): 2 kA
  • Number of poles (EF001391): 1
  • Motor drive optional (EF007386): No

More info

▲

General specifications

Product Name
Eaton Moeller® series T5B Main switch
Catalog Number
094278
Model Code
T5B-1-8200/EA/SVB-SW
EAN
4015080942788
Product Length/Depth
123 mm
Product Height
88 mm
Product Width
88 mm
Product Weight
0.47 kg
Certifications
CSA Class No.: 3211-05
IEC/EN 60947-3
CSA-C22.2 No. 94
CSA-C22.2 No. 60947-4-1-14
UL 60947-4-1
VDE 0660
IEC/EN 60204
CSA
UL File No.: E36332
CSA File No.: 012528
UL Category Control No.: NLRV
CE
UL
IEC/EN 60947
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second
