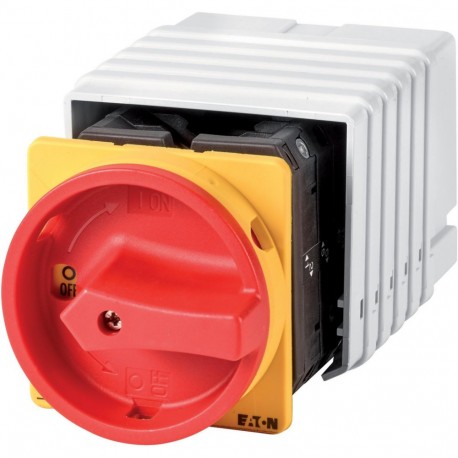

EATON - MOELLER T5B-6-8348/EA/SVB T5B-6-8348/EA/SVB 091724 Y7-91724 EATON ELECTRIC Main switch, 12-pole, 63 A, Emergency-Stop function, 90 °, .. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T5B-6-8348/EA/SVB 091724 Y7-91724 EATON ELECTRIC Main switch, 12-pole, 63 A, Emergency-Stop function, 90 °, ..

T5B-6-8348/EA/SVB

091724

Y7-91724

EATON - MOELLER

1 Pcs.

Main switch, 12-pole, 63 A, Emergency-Stop function, 90 °, flush mounting General switch; 12 poles; 63 A; 90 °; Recessed mounting; Handle Eaton Moeller® series T5B Main switch, T5B, 63 A, flush mounting, 6 contact unit(s), 12-pole, Emergency switching off function, With red rotary handle and yellow locking ring Main switch, Product range: Main switch, maintenance switch, Repair switch, Part group reference: T5B, Stop Function: Emergency switching off function, With red rotary handle and yellow locking ring, 12-pole, Degree of Protection: Front IP65, Design: flush mounting, Switching angle: 90 °, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 30 kW, Rated uninterrupted current: Iu = 63 A, 6 contact unit(s), Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, UL, Switch-disconnector according to IEC/EN 60947-3

Connectors > Switch disconnector
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Incorporating a reliable Emergency-Stop function with a 90-degree rotary action, the Eaton Moeller T5B-6-8348/EA/SVB main switch manages complex multi-circuit industrial applications. High-pole-count switches are typically deployed in sophisticated automation environments where simultaneous isolation of numerous electrical paths is mandatory. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Version as main switch (EF006981): Yes
  • Version as maintenance-/service switch (EF006986): Yes
  • Version as safety switch (EF006985): No
  • Version as emergency stop installation (EF006959): Yes
  • Version as reversing switch (EF009408): No
  • Number of switches (EF005586): 1
  • Rated operating voltage (EF001435): 690 V
  • Rated permanent current Iu (EF001389): 63 A
  • Rated permanent current at AC-21, 400 V (EF009165): 63 A
  • Rated operation power at AC-3, 400 V (EF001364): 22 kW
  • Rated short-time withstand current lcw (EF007050): 1.3 kA
  • Rated operation power at AC-23, 400 V (EF007027): 30 kW
  • Switching power at 400 V (EF009166): 30 kW
  • Conditioned rated short-circuit current Iq (EF001444): 2 kA
  • Number of poles (EF001391): 12
  • Motor drive optional (EF007386): No

More info

▲

General specifications

Product Name
Eaton Moeller® series T5B Main switch
Catalog Number
091724
Model Code
T5B-6-8348/EA/SVB
EAN
4015080917243
Product Length/Depth
206 mm
Product Height
88 mm
Product Width
88 mm
Product Weight
1.245 kg
Certifications
UL
CE
CSA Class No.: 3211-05
UL 60947-4-1
IEC/EN 60947-3
CSA-C22.2 No. 94
CSA File No.: 012528
UL Category Control No.: NLRV
CSA-C22.2 No. 60947-4-1-14
UL File No.: E36332
IEC/EN 60204
VDE 0660
CSA
IEC/EN 60947
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second
