T3-6-8347/V/SVB 004436 Y7-4436 EATON ELECTRIC Main switch, 11-pole, 32 A, Emergency-Stop function, 90 °, rea..
T3-6-8347/V/SVB
004436
Y7-4436
EATON - MOELLER
1 Pcs.
Connectors > Switch disconnector
Disconnectors and Cam Switches
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview

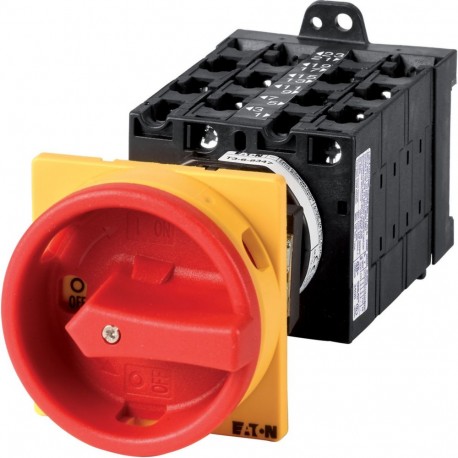

The Eaton Moeller T3-6-8347/V/SVB functions as a multi-pole main switch equipped with integrated emergency-stop capabilities for machine safety. Engineers integrate these rotary control units into electrical enclosures to disconnect multiple lines simultaneously and prevent accidental startup. Please note that pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Version as main switch (EF006981): Yes
- Version as maintenance-/service switch (EF006986): Yes
- Version as safety switch (EF006985): No
- Version as emergency stop installation (EF006959): Yes
- Version as reversing switch (EF009408): No
- Number of switches (EF005586): 1
- Rated operating voltage (EF001435): 690 V
- Rated permanent current Iu (EF001389): 32 A
- Rated permanent current at AC-21, 400 V (EF009165): 32 A
- Rated operation power at AC-3, 400 V (EF001364): 11 kW
- Rated short-time withstand current lcw (EF007050): 0.65 kA
- Rated operation power at AC-23, 400 V (EF007027): 15 kW
- Switching power at 400 V (EF009166): 15 kW
- Conditioned rated short-circuit current Iq (EF001444): 1 kA
- Number of poles (EF001391): 11
- Motor drive optional (EF007386): No
More info
▲General specifications
UL
UL 60947-4-1
UL File No.: E36332
VDE 0660
CSA File No.: 012528
IEC/EN 60204
CE
CSA
CSA-C22.2 No. 94
CSA Class No.: 3211-05
IEC/EN 60947
CSA-C22.2 No. 60947-4-1-14
UL Category Control No.: NLRV
