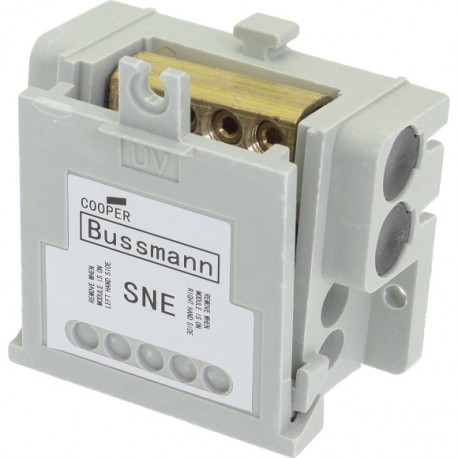

MAIN ASSEMBLY 7893019 SNE-HS EATON ELECTRIC Connector, low voltage, 100 A, AC 415 V, BS1361, 1P, BS, separat..
MAIN ASSEMBLY - 7893019
SNEHS
EATON - MOELLER
10 Pcs.
Connector, low voltage, 100 A, AC 415 V, BS1361, 1P, BS, separate neutral and earth module
MAIN ASSEMBLY - 7893019
Fuse holder accessory, Connector, low voltage, 100 A, AC 415 V, BS1361, 1P, BS, neutral and earth module, separate, for house-service cut-out, BS 7657, Breaking Capacity 33 kA, Optional accessories, Supplied with
Automation > Accessories/spare parts for electrical fuses/fuse holders
Bussmann fuses
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Connector, low voltage, 100 A, AC 415 V, BS1361, 1P, BS, separate neutral and earth module
Fuse holder accessory, Connector, low voltage, 100 A, AC 415 V, BS1361, 1P, BS, neutral and earth module, separate, for house-service cut-out, BS 7657, Breaking Capacity 33 kA
Delivery program
Product range
Fuse holder accessory
Basic function
Connector
Field of application
low voltage
Rated current [I]
100 A
Rated voltage
AC 415 V
Construction size
BS1361
Description
neutral and earth module, separate
Breaking Capacity
33 kA
Number of poles
1P
usable for size/applications
for house-service cut-out
Standard/Approval
BS
Standards/Regulations
BS 7657
Technical data ETIM 7.0
Circuit breakers and fuses (EG000020) / Accessories for electrical fuses/fuse holders (EC002936)
Type of accessory
Other
Suitable for
Other
Construction size fuse insert
Other
| Feature Name | Feature Value |
|---|---|
| Type of accessory/spare part (EF000215) | Other |
| Accessory (EF013236) | No |
| Spare part (EF013237) | No |
| Suitable for (EF000073) | Other |
| Construction size fuse insert (EF001452) | Other |
