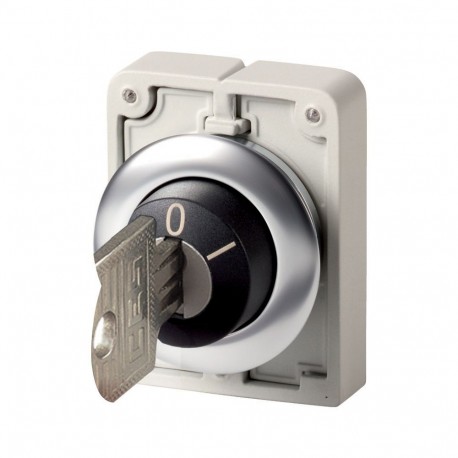

M30I-FWRS-SA(*)-*-A8 188167 Y7-188167 EATON ELECTRIC Key-operated push-buttons, flat front, master-key syste..
M30I-FWRS-SA(*)-*-A8
188167
Y7-188167
EATON - MOELLER
1 Pcs.
Automation > Front element for selector switch
Auxiliary Control and Signalling Elements
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
M30I-FWRS-SA(*)-*-A8 Eaton Moeller key-operated push-button provides a flat-front security interface for industrial control systems, restricting activation privileges to authorized users. These components protect automated machinery from unintended manual actuation.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Number of switch positions (EF000231): 2
- Type of control element (EF006976): Key
- Suitable for lighting (EF001142): No
- Colour control element (EF007167): Black
- Construction type lens (EF006253): Round
- Hole diameter (EF000079): 30 mm
- Width opening (EF004565): 0 mm
- Height opening (EF004778): 0 mm
- Switching function latching (EF007447): Yes
- Spring-return (EF001407): No
- With front ring (EF006014): Yes
- Material front ring (EF005972): Metal
- Colour front ring (EF002429): Stainless steel
- Degree of protection (IP), front side (EF003118): IP66
- Degree of protection (NEMA) (EF011959): 4X, 13
More info
▲Delivery program
= spring-return]
60°with SWD-RMQ connections
Technical data
VDE 0660
Damp heat, cyclic, to IEC 60068-2-30
Shock duration 11 ms
Sinusoidal
according to IEC 60068-2-27 g
GL
