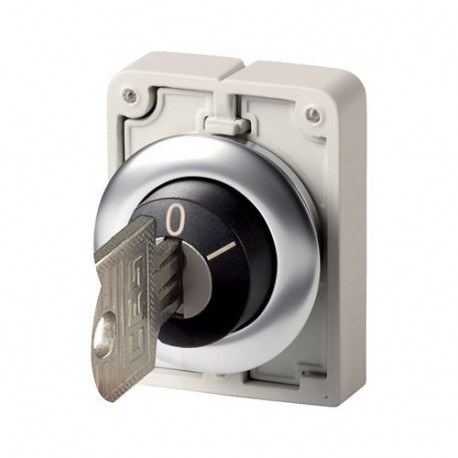

M30I-FWRS-SA(*)-* 188166 Y7-188166 EATON ELECTRIC Key-operated push-buttons, flat front, master-key system c..
M30I-FWRS-SA(*)-*
188166
Y7-188166
EATON - MOELLER
1 Pcs.
Automation > Front element for selector switch
Auxiliary Control and Signalling Elements
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Engineered with a low-profile flat front design, the Eaton Moeller M30I-FWRS-SA(*)-* key-operated push-button provides secure master-key functionality for control enclosures. Such lockable actuators ensure that only authorized operators can engage specific system commands or electrical interlocks. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Number of switch positions (EF000231): 2
- Type of control element (EF006976): Key
- Suitable for lighting (EF001142): No
- Colour control element (EF007167): Black
- Construction type lens (EF006253): Round
- Hole diameter (EF000079): 30 mm
- Width opening (EF004565): 0 mm
- Height opening (EF004778): 0 mm
- Switching function latching (EF007447): Yes
- Spring-return (EF001407): No
- With front ring (EF006014): Yes
- Material front ring (EF005972): Metal
- Colour front ring (EF002429): Stainless steel
- Degree of protection (IP), front side (EF003118): IP66
- Degree of protection (NEMA) (EF011959): 4X, 13
More info
▲General specifications
VDE 0660
CSA file No. 012528
CSA Class No.: 3211-03
DNV
UL File No.: E29184
GL
IEC/EN 60947-5
UL 508
CSA-C22.2 No. 14-05
CSA-C22.2 No. 94-91
CE marking
UL Category Control No.: NKCR
UL Listed
CSA certified
Features & Functions
Flat front
General
Ambient conditions, mechanical
Mechanical, According to IEC/EN 60068-2-27
Climatic environmental conditions
Damp heat, constant, to IEC 60068-2-78
Communication
With SWD-RMQ connections
Actuator
Switching function latching
Maintained
