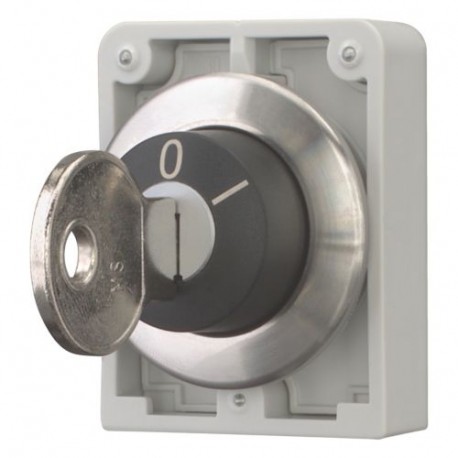

M30I-FWRS-MS8 188163 Y7-188163 EATON ELECTRIC Key-operated push-buttons, flat front, not master-key system c..
M30I-FWRS-MS8
188163
Y7-188163
EATON - MOELLER
1 Pcs.
Automation > Front element for selector switch
Auxiliary Control and Signalling Elements
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An Eaton Moeller key-operated push-button functions as a secure operator interface component designed to limit machine activation or mode changes to authorized personnel holding the correct key. These actuators are frequently installed on industrial control panels where safety or operational security requires restricted access.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Product Name: Eaton Moeller® series M30 key-operated actuator
- Catalog Number: 188163
- Model Code: M30I-FWRS-MS8
- EAN: 4015081858323
- Product Length/Depth: 36 mm
- Product Height: 67 mm
- Product Width: 46 mm
- Product Weight: 0.06 kg
- Type: Key-operated button
- Accessories: 1 key included with supplied equipment.
- Actuator color: Black
- 10.10 Temperature rise: Not applicable.
- 10.2.2 Corrosion resistance: Meets the product standard's requirements.
- 10.2.3.1 Verification of thermal stability of enclosures: Meets the product standard's requirements.
- 10.2.4 Resistance to ultra-violet (UV) radiation: Please enquire
- 10.2.5 Lifting: Does not apply, since the entire switchgear needs to be evaluated.
More info
▲General specifications
| Product Name | Eaton Moeller® series M30 key-operated actuator |
| Catalog Number | 188163 |
| Model Code | M30I-FWRS-MS8 |
| EAN | 4015081858323 |
| Product Length/Depth | 36 mm |
| Product Height | 67 mm |
| Product Width | 46 mm |
| Product Weight | 0.06 kg |
| Certifications | VDE 0660 IEC/EN 60947 CSA file No. 012528 CSA Class No.: 3211-03 DNV UL File No.: E29184 GL IEC/EN 60947-5 UL 508 CSA-C22.2 No. 14-05 CSA-C22.2 No. 94-91 CE marking UL Category Control No.: NKCR UL Listed CSA certified |
Product specifications
| Type | Key-operated button |
| Accessories | 1 key included with supplied equipment. |
| Actuator color | Black |
| Actuator function | Key withdrawable in position 1 Switching function latching Key withdrawable in position 0 Maintained |
| 10.10 Temperature rise | Not applicable. |
| 10.11 Short-circuit rating | Is the panel builder's responsibility. The specifications for the switchgear must be observed. |
| 10.12 Electromagnetic compatibility | Is the panel builder's responsibility. The specifications for the switchgear must be observed. |
| 10.13 Mechanical function | The device meets the requirements, provided the information in the instruction leaflet (IL) is observed. |
| 10.2.2 Corrosion resistance | Meets the product standard's requirements. |
| 10.2.3.1 Verification of thermal stability of enclosures | Meets the product standard's requirements. |
| 10.2.3.2 Verification of resistance of insulating materials to normal heat | Meets the product standard's requirements. |
| 10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects | Meets the product standard's requirements. |
| 10.2.4 Resistance to ultra-violet (UV) radiation | Please enquire |
| 10.2.5 Lifting | Does not apply, since the entire switchgear needs to be evaluated. |
| 10.2.6 Mechanical impact | Does not apply, since the entire switchgear needs to be evaluated. |
| 10.2.7 Inscriptions | Meets the product standard's requirements. |
| 10.3 Degree of protection of assemblies | Does not apply, since the entire switchgear needs to be evaluated. |
| 10.4 Clearances and creepage distances | Meets the product standard's requirements. |
| 10.5 Protection against electric shock | Does not apply, since the entire switchgear needs to be evaluated. |
| 10.6 Incorporation of switching devices and components | Does not apply, since the entire switchgear needs to be evaluated. |
| 10.7 Internal electrical circuits and connections | Is the panel builder's responsibility. |
| 10.8 Connections for external conductors | Is the panel builder's responsibility. |
| 10.9.2 Power-frequency electric strength | Is the panel builder's responsibility. |
| 10.9.3 Impulse withstand voltage | Is the panel builder's responsibility. |
| 10.9.4 Testing of enclosures made of insulating material | Is the panel builder's responsibility. |
| Fitted with: | Front ring |
| Operating frequency | 100 Operations/h |
| Pollution degree | 3 |
| Climatic proofing | Damp heat, cyclic, to IEC 60068-2-30 Damp heat, constant, to IEC 60068-2-78 |
| Connection to SmartWire-DT | Yes With SWD-RMQ connections |
| Actuator type | Key |
| Ambient operating temperature - max | 70 °C |
| Ambient operating temperature - min | -25 °C |
| Equipment heat dissipation, current-dependent Pvid | 0 W |
| Force for positive opening - min | 0 N |
| Heat dissipation capacity Pdiss | 0 W |
| Heat dissipation per pole, current-dependent Pvid | 0 W |
| Opening diameter | 30 mm |
| Operating torque | 0.5 Nm |
| Rated operational current for specified heat dissipation (In) | 0 A |
| Static heat dissipation, non-current-dependent Pvs | 0 W |
| Switching angle | 60 ° |
| Bezel color | Stainless steel |
| Shock resistance | Mechanical, According to IEC/EN 60068-2-27 15 g, Mechanical, According to IEC/EN 60068-2-27, Sinusoidal shock 11 ms |
| Key code | MS8 |
| Bezel material | Metal |
| Design | Key operation lock mechanism Flat front |
| Mounting position | As required |
| Overvoltage category | III |
| Degree of protection | NEMA 4X, 13 |
| Degree of protection (front side) | IP66 |
| Functions | Stay-put/spring-return function, can be changed with coding parts M22-XC-Y |
| Indicator color | Other |
| Lens type | Round |
| Lifespan, mechanical | 100,000 Operations |
| Number of switch positions | 2 |
| Size | Front dimensions: Ø 36 mm |
| Product category | RMQ-Titan |
