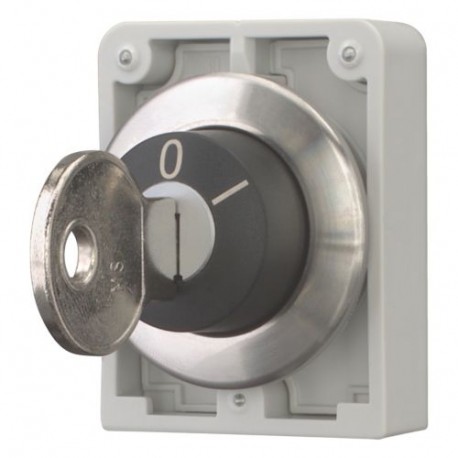

EATON - MOELLER M30I-FWRS-MS7 M30I-FWRS-MS7 188162 Y7-188162 EATON ELECTRIC Key-operated push-buttons, flat front, not master-key system c.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

M30I-FWRS-MS7 188162 Y7-188162 EATON ELECTRIC Key-operated push-buttons, flat front, not master-key system c..

M30I-FWRS-MS7

188162

Y7-188162

EATON - MOELLER

1 Pcs.

Key-operated push-buttons, flat front, not master-key system compatible, 2 positions, maintained, MS7 M30I-FWRS-MS7 Eaton Moeller® series M30 Key-operated actuator, Flat Front, maintained, 2 positions, MS7, Key withdrawable: 0, I, Bezel: stainless steel Key-operated actuator, Product range: RMQ-Titan, Single unit, Design: Key operation lock mechanism, maintained, Not suitable for master key systems, 2 positions, Lock mechanism: MS7, I, Degree of Protection: IP64, Front ring stainless steel, Connection to SmartWire-DT: yes, with SWD-RMQ connections, Front dimensions: Ø 36mm, Instructions: Stay-put/spring-return function, can be changed with coding parts M22-XC-Y, Key withdraw convertible with coding adapters M22-XC-..., With 1 key, Standards: IEC/EN 60947, VDE 0660, Degree of Protection: IP64

Automation > Front element for selector switch
Auxiliary Control and Signalling Elements

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Eaton Moeller M30I-FWRS-MS7 is a flat front key-operated push-button designed for secure, lockable control functions on industrial panels. Key-operated control devices prevent unauthorized personnel from activating critical machinery or changing system states. Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Number of switch positions (EF000231): 2
  • Type of control element (EF006976): Key
  • Suitable for lighting (EF001142): No
  • Colour control element (EF007167): Black
  • Construction type lens (EF006253): Round
  • Hole diameter (EF000079): 30 mm
  • Width opening (EF004565): 0 mm
  • Height opening (EF004778): 0 mm
  • Switching function latching (EF007447): Yes
  • Spring-return (EF001407): No
  • With front ring (EF006014): Yes
  • Material front ring (EF005972): Metal
  • Colour front ring (EF002429): Stainless steel
  • Degree of protection (IP), front side (EF003118): IP66
  • Degree of protection (NEMA) (EF011959): 4X, 13

More info

▲

General specifications

Product Name
Eaton Moeller® series M30 Key-operated actuator
Catalog Number
188162
Model Code
M30I-FWRS-MS7
EAN
4015081858316
Product Length/Depth
36 mm
Product Height
67 mm
Product Width
46 mm
Product Weight
0.06 kg
Certifications
IEC/EN 60947
VDE 0660

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
