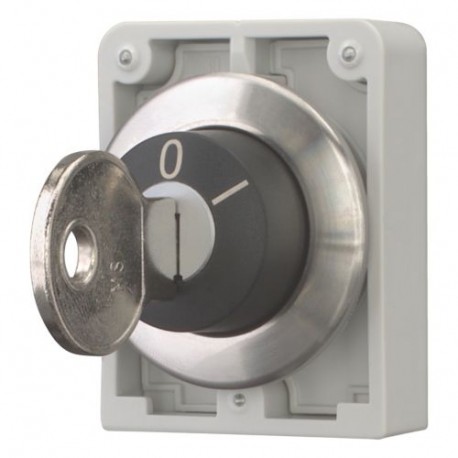

EATON - MOELLER M30I-FWRS-MS5-A1 M30I-FWRS-MS5-A1 188160 Y7-188160 EATON ELECTRIC Key-operated push-buttons, flat front, not master-key syste.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

M30I-FWRS-MS5-A1 188160 Y7-188160 EATON ELECTRIC Key-operated push-buttons, flat front, not master-key syste..

M30I-FWRS-MS5-A1

188160

Y7-188160

EATON - MOELLER

1 Pcs.

Key-operated push-buttons, flat front, not master-key system compatible, 2 positions, maintained, MS5 M30I-FWRS-MS5-A1 Eaton Moeller® series M30 Key-operated actuator, Flat Front, maintained, 2 positions, MS5, Key withdrawable: 0, Bezel: stainless steel Key-operated actuator, Product range: RMQ-Titan, Single unit, Design: Key operation lock mechanism, maintained, Not suitable for master key systems, 2 positions, Lock mechanism: MS5, Degree of Protection: IP64, Front ring stainless steel, Connection to SmartWire-DT: yes, with SWD-RMQ connections, Front dimensions: Ø 36mm, Instructions: Stay-put/spring-return function, can be changed with coding parts M22-XC-Y, Key withdraw convertible with coding adapters M22-XC-..., With 1 key, Standards: IEC/EN 60947, VDE 0660, Degree of Protection: IP64

Automation > Front element for selector switch
Auxiliary Control and Signalling Elements

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Designed for flat front control architectures, this key-operated push-button ensures secure access management on modern industrial operator interfaces. It enables precise, restricted switching control for machinery requiring high levels of operational safety. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Number of switch positions (EF000231): 2
  • Type of control element (EF006976): Key
  • Suitable for lighting (EF001142): No
  • Colour control element (EF007167): Black
  • Construction type lens (EF006253): Round
  • Hole diameter (EF000079): 30 mm
  • Width opening (EF004565): 0 mm
  • Height opening (EF004778): 0 mm
  • Switching function latching (EF007447): Yes
  • Spring-return (EF001407): No
  • With front ring (EF006014): Yes
  • Material front ring (EF005972): Metal
  • Colour front ring (EF002429): Stainless steel
  • Degree of protection (IP), front side (EF003118): IP66
  • Degree of protection (NEMA) (EF011959): 4X, 13

More info

▲

General specifications

Product Name
Eaton Moeller® series M30 Key-operated actuator
Catalog Number
188160
Model Code
M30I-FWRS-MS5-A1
EAN
4015081858293
Product Length/Depth
36 mm
Product Height
67 mm
Product Width
46 mm
Product Weight
0.06 kg
Certifications
IEC/EN 60947
VDE 0660
CSA file No. 012528
CSA Class No.: 3211-03
DNV
UL File No.: E29184
GL
IEC/EN 60947-5
UL 508
CSA-C22.2 No. 14-05
CSA-C22.2 No. 94-91
CE marking
UL Category Control No.: NKCR
UL Listed
CSA certified

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
