EATON - MOELLER M30I-FWRS-MS4-A1 M30I-FWRS-MS4-A1 188158 Y7-188158 EATON ELECTRIC Key-operated push-buttons, flat front, not master-key syste.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

M30I-FWRS-MS4-A1 188158 Y7-188158 EATON ELECTRIC Key-operated push-buttons, flat front, not master-key syste..

M30I-FWRS-MS4-A1

188158

Y7-188158

EATON - MOELLER

1 Pcs.

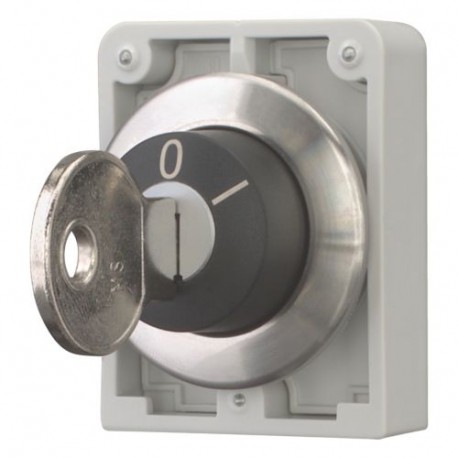

Key-operated push-buttons, flat front, not master-key system compatible, 2 positions, maintained, MS4 M30I-FWRS-MS4-A1 Eaton Moeller® series M30 Key-operated actuator, Flat Front, maintained, 2 positions, MS4, Key withdrawable: 0, Bezel: stainless steel

Automation > Front element for selector switch
Auxiliary Control and Signalling Elements

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Eaton Moeller M30I-FWRS-MS4-A1 key-operated push-buttons are engineered to restrict machine control adjustments to authorized operators in heavy industrial plants. Integrating these components into switchgear panels protects processes from accidental or unauthorized interference. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Manufacturer: Eaton Moeller
  • Manufacturer part number: M30I-FWRS-MS4-A1
  • Catalogue code: 188158

More info

▲

General specifications

Product Name
Eaton Moeller® series M30 Key-operated actuator
Catalog Number
188158
Model Code
M30I-FWRS-MS4-A1
EAN
4015081858279
Product Length/Depth
36 mm
Product Height
67 mm
Product Width
46 mm
Product Weight
0.06 kg
Certifications
VDE 0660
IEC/EN 60947
CSA file No. 012528
CSA Class No.: 3211-03
DNV
UL File No.: E29184
GL
IEC/EN 60947-5
UL 508
CSA-C22.2 No. 14-05
CSA-C22.2 No. 94-91
CE marking
UL Category Control No.: NKCR
UL Listed
CSA certified

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
