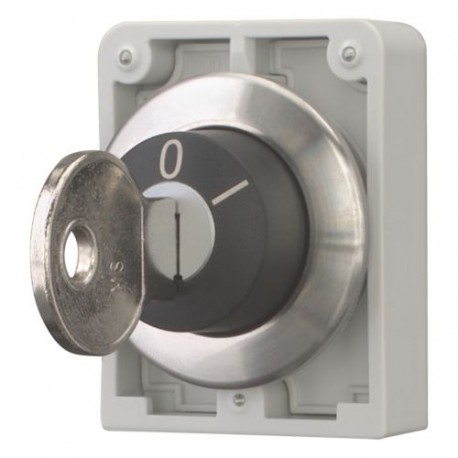

EATON - MOELLER M30I-FWRS-MS*-A21-* M30I-FWRS-MS*-A21-* 188152 Y7-188152 EATON ELECTRIC Key-operated push-buttons, flat front, not master-key sy.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

M30I-FWRS-MS*-A21-* 188152 Y7-188152 EATON ELECTRIC Key-operated push-buttons, flat front, not master-key sy..

M30I-FWRS-MS*-A21-*

188152

Y7-188152

EATON - MOELLER

1 Pcs.

Key-operated push-buttons, flat front, not master-key system compatible, 2 positions, maintained, MS selectable M30I-FWRS-MS*-A21-* Eaton Moeller® series M30 Key-operated actuator, Flat Front, maintained, 2 positions, MS1–MS20, Key withdrawable:, I, Bezel: stainless steel Key-operated actuator, Product range: RMQ-Titan, Single unit, Design: Key operation lock mechanism, maintained, Not suitable for master key systems, 2 positions, Lock mechanism: selectable, I, Degree of Protection: IP64, Front ring stainless steel, Connection to SmartWire-DT: yes, with SWD-RMQ connections, Front dimensions: Ø 36mm, Instructions: Stay-put/spring-return function, can be changed with coding parts M22-XC-Y, Key withdraw convertible with coding adapters M22-XC-..., With 1 key, Standards: IEC/EN 60947, VDE 0660, Degree of Protection: IP64

Automation > Front element for selector switch
Auxiliary Control and Signalling Elements

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

General specifications

Product Name
Eaton Moeller® series M30 Key-operated actuator
Catalog Number
188152
Model Code
M30I-FWRS-MS*-A21-*
Product Length/Depth
36 mm
Product Height
67 mm
Product Width
46 mm
Product Weight
0.06 kg
Certifications
IEC/EN 60947
VDE 0660

ETIM for 188152 Low-voltage industrial controls and switchgear (EC000222)
Feature Name Feature Value
Number of switch positions (EF000231) 2
Type of control element (EF006976) Key
Suitable for lighting (EF001142) No
Colour control element (EF007167) Black
Colour indicator light cap (EF007165) Other
Construction type lens (EF006253) Round
Hole diameter (EF000079) 30 mm
Width opening (EF004565) 0 mm
Height opening (EF004778) 0 mm
Switching function latching (EF007447) Yes
Spring-return (EF001407) No
With front ring (EF006014) Yes
Material front ring (EF005972) Metal
Colour front ring (EF002429) Stainless steel
Degree of protection (IP), front side (EF003118) IP66
Degree of protection (NEMA) (EF011959) 4X, 13
