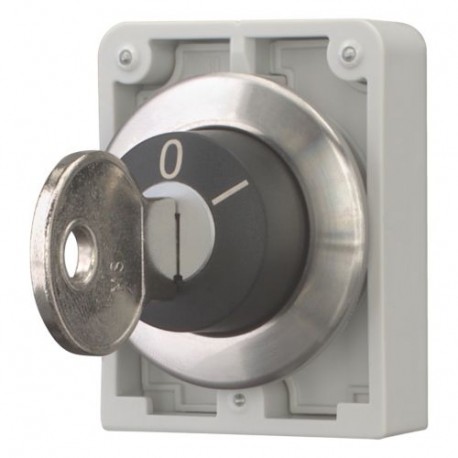

EATON - MOELLER M30I-FWRS-A1 M30I-FWRS-A1 188149 Y7-188149 EATON ELECTRIC Key-operated push-buttons, flat front, not master-key system co.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

M30I-FWRS-A1 188149 Y7-188149 EATON ELECTRIC Key-operated push-buttons, flat front, not master-key system co..

M30I-FWRS-A1

188149

Y7-188149

EATON - MOELLER

1 Pcs.

Key-operated push-buttons, flat front, not master-key system compatible, 2 positions, maintained M30I-FWRS-A1 Eaton Moeller® series M30 Key-operated actuator, Flat Front, maintained, 2 positions, Key withdrawable: 0, Bezel: stainless steel Key-operated actuator, Product range: RMQ-Titan, Single unit, Design: Key operation lock mechanism, maintained, Not suitable for master key systems, 2 positions, Degree of Protection: IP64, Front ring stainless steel, Connection to SmartWire-DT: yes, with SWD-RMQ connections, Front dimensions: Ø 36mm, Instructions: Stay-put/spring-return function, can be changed with coding parts M22-XC-Y, Key withdraw convertible with coding adapters M22-XC-..., With 1 key, Standards: IEC/EN 60947, VDE 0660, Degree of Protection: IP64

Automation > Front element for selector switch
Auxiliary Control and Signalling Elements

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Eaton Moeller M30I-FWRS-A1 is a key-operated push-button actuator configured for flat-front industrial control panel cutouts. Key-actuated switches of this style offer secure interlocking capabilities, ensuring that authorized operators can safely activate or latch specific electrical functions.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Number of switch positions: 2
  • Type of control element: Key
  • Suitable for lighting: No
  • Colour control element: Black
  • Construction type lens: Round
  • Hole diameter: 30 mm
  • Width opening: 0 mm
  • Height opening: 0 mm
  • Switching function latching: Yes
  • Spring-return: No
  • With front ring: Yes
  • Material front ring: Metal
  • Colour front ring: Stainless steel
  • Degree of protection (IP), front side: IP66
  • Degree of protection (NEMA): 4X, 13

More info

▲

General specifications

Product Name
Eaton Moeller® series M30 Key-operated actuator
Catalog Number
188149
Model Code
M30I-FWRS-A1
EAN
4015081858217
Product Length/Depth
36 mm
Product Height
67 mm
Product Width
46 mm
Product Weight
0.06 kg
Certifications
IEC/EN 60947
VDE 0660

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
