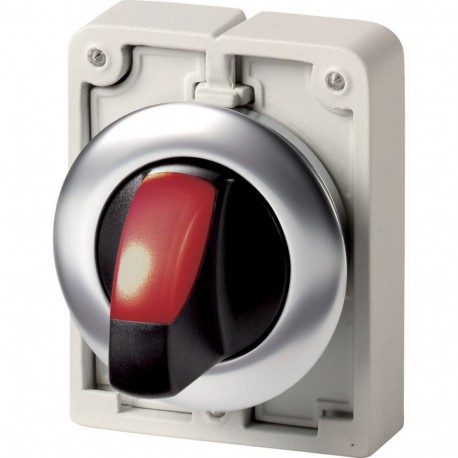

EATON - MOELLER M30I-FWRLK3-R M30I-FWRLK3-R 188074 Y7-188074 EATON ELECTRIC Illuminated option keys, flat front, with T-handle, red, 3 pos.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

M30I-FWRLK3-R 188074 Y7-188074 EATON ELECTRIC Illuminated option keys, flat front, with T-handle, red, 3 pos..

M30I-FWRLK3-R

188074

Y7-188074

EATON - MOELLER

1 Pcs.

Illuminated option keys, flat front, with T-handle, red, 3 positions, maintained M30I-FWRLK3-R Illuminated selector switch actuator, RMQ-Titan, with thumb-grip, maintained, 3 positions, red, Front ring stainless steel Illuminated selector switch actuator, Product range: RMQ-Titan, Single unit, Design: with thumb-grip, maintained, 3 positions, Color Thumb-grip: red, Degree of Protection: IP64, Front ring stainless steel, Connection to SmartWire-DT: yes, with SWD-RMQ connections, Front dimensions: Ø 36mm, Instructions: Stay-put/spring-return function, can be changed with coding parts M22-XC-Y, Standards: IEC/EN 60947, VDE 0660, Degree of Protection: IP64

Automation > Front element for selector switch
Auxiliary Control and Signalling Elements

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Illuminated selector switch actuator, RMQ-Titan, with thumb-grip, maintained, 3 positions, red, Front ring stainless steel
Illuminated selector switch actuator, Product range: RMQ-Titan, Single unit, Design: with thumb-grip, maintained, 3 positions, Color Thumb-grip: red, Degree of Protection: IP64, Front ring stainless steel, Connection to SmartWire-DT: yes, with SWD-RMQ connections, Front dimensions: Ø 36mm, Instructions: Stay-put/spring-return function, can be changed with coding parts M22-XC-Y, Standards: IEC/EN 60947, VDE 0660, Degree of Protection: IP64

General specifications
Product name
Eaton Moeller® series M30 Illuminated selector switch actuator
Part no.
M30I-FWRLK3-R
EAN
4015081857524
Product Length/Depth
36 millimetre
Product height
47 millimetre
Product width
46 millimetre
Product weight
0.042 kilogram
Certifications
VDE 0660
IEC/EN 60947
Product Tradename
M30
Product Type
Illuminated selector switch actuator
Product Sub Type
None
Features & Functions
Bezel color
Stainless steel
Bezel material
Metal
Design
With thumb-grip
Fitted with:
Front ring
Functions
Stay-put/spring-return function, can be changed with coding parts M22-XC-Y
General information
Degree of protection
NEMA 4X, 13
Degree of protection (front side)
IP66
Lifespan, mechanical
100,000 Operations
Opening diameter
30 mm
Operating frequency
2000 Operations/h
Operating torque
0.3 N·m
Product category
RMQ-Titan
Size
Front dimensions: Ø 36 mm
Suitable for
Illumination
Switching angle
60 °
Type
Illuminated selector switch actuator
Ambient conditions, mechanical
Mounting position
As required
Shock resistance
Mechanical, According to IEC/EN 60068-2-27
15 g, Mechanical, According to IEC/EN 60068-2-27, Sinusoidal shock 11 ms
Climatic environmental conditions
Ambient operating temperature - min
-25 °C
Ambient operating temperature - max
70 °C
Climatic proofing
Damp heat, constant, to IEC 60068-2-78
Damp heat, cyclic, to IEC 60068-2-30
Communication
Connection to SmartWire-DT
With SWD-RMQ connections
Yes
Actuator
Actuator color
Red
Actuator function
Switching function latching
Maintained
Actuator type
Toggle
Number of switch positions
3
Contacts
Force for positive opening - min
0 N

Technical data ETIM 9.0

Low-voltage industrial components (EG000017) / Front element for selector switch (EC000222)
Electric engineering, automation, process control engineering / Low-voltage switch technology / Command and alarm device / Front element for selector switches (ecl@ss13-27-37-12-13 [AKF031019])
Number of switch positions
3
Type of control element
Toggle
Suitable for illumination
Yes
Colour control element
Red
Colour indicator light cap
Red
Construction type lens
Round
Hole diameter
30 mm
Width opening
0 mm
Height opening
0 mm
Switching function latching
Yes
Spring-return
No
With front ring
Yes
Material front ring
Metal
Colour front ring
Stainless steel
Degree of protection (IP), front side
IP66
Degree of protection (NEMA)
4X, 13

ETIM for 188074 Low-voltage industrial controls and switchgear (EC000222)
Feature Name Feature Value
Number of switch positions (EF000231) 3
Type of control element (EF006976) Toggle
Suitable for lighting (EF001142) Yes
Colour control element (EF007167) Red
Colour indicator light cap (EF007165) Red
Construction type lens (EF006253) Round
Hole diameter (EF000079) 30 mm
Width opening (EF004565) 0 mm
Height opening (EF004778) 0 mm
Switching function latching (EF007447) Yes
Spring-return (EF001407) No
With front ring (EF006014) Yes
Material front ring (EF005972) Metal
Colour front ring (EF002429) Stainless steel
Degree of protection (IP), front side (EF003118) IP66
Degree of protection (NEMA) (EF011959) 4X, 13

Product Datasheet
