View larger
M30I-FWRK3-* 188188 Y7-188188 EATON ELECTRIC Selector switch actuators, flat front, with T-handle, 3 positio..
M30I-FWRK3-*
188188
Y7-188188
EATON - MOELLER
1 Pcs.
Automation > Front element for selector switch
Auxiliary Control and Signalling Elements
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview

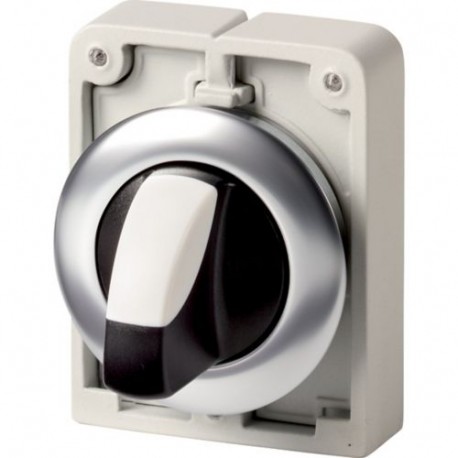

The Eaton Moeller M30I-FWRK3-* selector switch actuator features a T-handle configuration designed for ergonomic manual switching across three positions on flat-front panels. Industrial machinery relies on these reliable actuators to manage operational modes. Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- Number of switch positions: 3
- Type of control element: Toggle
- Suitable for lighting: No
- Colour control element: Black
- Construction type lens: Round
- Hole diameter: 30 mm
- Width opening: 0 mm
- Height opening: 0 mm
- Switching function latching: Yes
- Spring-return: No
- With front ring: Yes
- Material front ring: Metal
- Colour front ring: Stainless steel
- Degree of protection (IP), front side: IP66
- Degree of protection (NEMA): 4X, 13
More info
▲General specifications
VDE 0660
CSA file No. 012528
CSA Class No.: 3211-03
DNV
UL File No.: E29184
GL
IEC/EN 60947-5
UL 508
CSA-C22.2 No. 14-05
CSA-C22.2 No. 94-91
CE marking
UL Category Control No.: NKCR
UL Listed
CSA certified
Features & Functions
Flat front
Plunger bridge for the middle contact
General
Ambient conditions, mechanical
Mechanical, According to IEC/EN 60068-2-27
Climatic environmental conditions
Damp heat, constant, to IEC 60068-2-78
Communication
Yes
Actuator
Switching function latching
