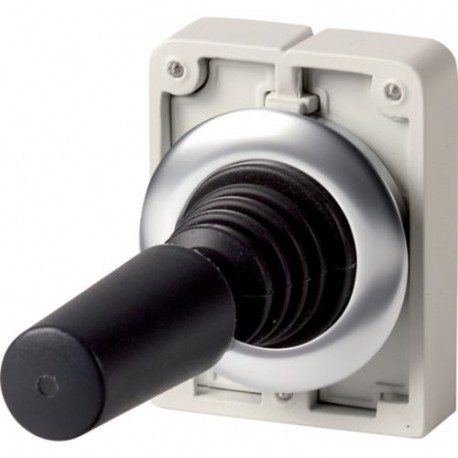

EATON - MOELLER M30I-FWRJS2V M30I-FWRJS2V 188083 Y7-188083 EATON ELECTRIC Joystick, flat front, maintained, vertical, metal shaft View larger
Images are for illustrative purposes only. Please refer to data sheet for details

M30I-FWRJS2V 188083 Y7-188083 EATON ELECTRIC Joystick, flat front, maintained, vertical, metal shaft

M30I-FWRJS2V

188083

Y7-188083

EATON - MOELLER

1 Pcs.

Joystick, flat front, maintained, vertical, metal shaft M30I-FWRJS2V Eaton Moeller® series M30 Joystick, RMQ-Titan, vertically momentary, with metal shaft, 2 positions, Front ring stainless steel Joystick, Product range: RMQ-Titan, Single unit, Description: with one operating point per operating direction, with metal shaft, 2 positions, Degree of Protection: IP66, Front ring stainless steel, Connection to SmartWire-DT: yes, with SWD-RMQ connections, Front dimensions: Ø 36mm, Function: maintained, Vertical, Standards: IEC/EN 60947, VDE 0660

Automation > Control switch, Joystick
Auxiliary Control and Signalling Elements

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Eaton Moeller joystick features a flat front design for modern control console integration, enabling smooth vertical actuation in industrial applications. These durable interface units are widely utilized to govern motorized positioning equipment and material handling systems. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Rated operation current Ie at AC-21, 400 V (EF002417): 0 A
  • Centre mounting, hole diameter (EF002424): 30 mm
  • Joy stick length (EF006524): 66 mm
  • Number of actuation directions (EF002425): 2
  • Number of switch positions (EF000231): 1
  • Number of make-and-break contacts per direction (EF005599): 0
  • With retraction in 0-position (EF002428): No
  • Locking in 0-position (EF006283): No
  • Coder (EF005666): No
  • Analogue output signal configurable (EF003236): No
  • With front ring (EF006014): Yes
  • Material front ring (EF005972): Metal
  • Colour front ring (EF002429): Stainless steel
  • Degree of protection (IP) (EF005474): IP66
  • Degree of protection (NEMA) (EF011959): 4X, 13

More info

▲

General specifications

Product Name
Eaton Moeller® series M30 Joystick
Catalog Number
188083
Model Code
M30I-FWRJS2V
EAN
4015081857616
Product Length/Depth
36 mm
Product Height
93 mm
Product Width
46 mm
Product Weight
0.06 kg
Certifications
VDE 0660
IEC/EN 60947

Features & Functions

Bezel color
Stainless steel
Bezel material
Metal
Fitted with:
Front ring
Filament bulb (24 V)
Metal shaft

General

Degree of protection
IP66
NEMA 4X, 13
Lifespan, mechanical
100,000 Operations
Opening diameter
30 mm
Operating frequency
2000 Operations/h
Product Category
RMQ-Titan
Size
Front dimensions: Ø 36 mm
Type
Joystick

Ambient conditions, mechanical

Mounting position
As required
Shock resistance
Mechanical, According to IEC/EN 60068-2-27
15 g, Mechanical, According to IEC/EN 60068-2-27, Sinusoidal shock 11 ms

Climatic environmental conditions

Ambient operating temperature - min
-25 °C
Ambient operating temperature - max
70 °C
Climatic proofing
Damp heat, cyclic, to IEC 60068-2-30
Damp heat, constant, to IEC 60068-2-78

Electrical rating

Rated operational current (Ie) at AC-21, 400 V, 415 V
0 A

Communication

Connection to SmartWire-DT
With SWD-RMQ connections
Yes

Actuator

Actuating force
5 N
Actuator function
Maintained
Vertical
Number of actuation directions
2

Contacts

Force for positive opening - min
0 N

Product Datasheet
