View larger
Images are for illustrative purposes only. Please refer to data sheet for details

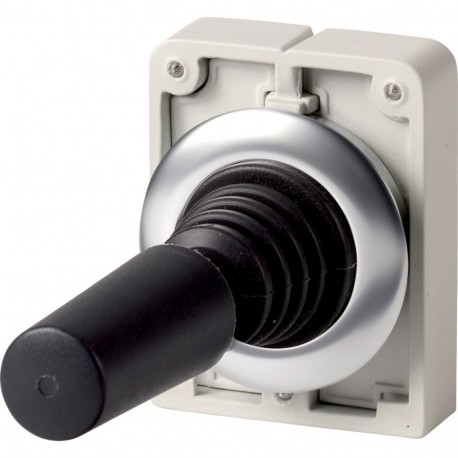

M30I-FWRJS2H 188082 Y7-188082 EATON ELECTRIC Joystick, flat front, maintained, horizontal, metal shaft
M30I-FWRJS2H
188082
Y7-188082
EATON - MOELLER
1 Pcs.
Joystick, flat front, maintained, horizontal, metal shaft
M30I-FWRJS2H
Eaton Moeller® series M30 Joystick, RMQ-Titan, horizontally momentary, with metal shaft, 2 positions, Front ring stainless steel
Joystick, Product range: RMQ-Titan, Single unit, Description: with one operating point per operating direction, with metal shaft, 2 positions, Degree of Protection: IP66, Front ring stainless steel, Connection to SmartWire-DT: yes, with SWD-RMQ connections, Front dimensions: Ø 36mm, Function: maintained, Horizontal, Standards: IEC/EN 60947, VDE 0660
Automation > Control switch, Joystick
Auxiliary Control and Signalling Elements
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲General specifications
Product Name
Eaton Moeller® series M30 Joystick
Catalog Number
188082
Model Code
M30I-FWRJS2H
EAN
4015081857609
Product Length/Depth
36 mm
Product Height
93 mm
Product Width
46 mm
Product Weight
0.06 kg
Certifications
IEC/EN 60947
VDE 0660
VDE 0660
| Feature Name | Feature Value |
|---|---|
| Rated operation current Ie at AC-21, 400 V (EF002417) | 0 A |
| Centre mounting, hole diameter (EF002424) | 30 mm |
| Joy stick length (EF006524) | 66 mm |
| Number of actuation directions (EF002425) | 2 |
| Number of switch positions (EF000231) | 1 |
| Number of normally open contacts per actuation direction (EF002427) | 0 |
| Number of normally closed contacts per actuation direction (EF008263) | 0 |
| Number of make-and-break contacts per direction (EF005599) | 0 |
| With retraction in 0-position (EF002428) | No |
| Locking in 0-position (EF006283) | No |
| Coder (EF005666) | No |
| Analogue output signal configurable (EF003236) | No |
| With front ring (EF006014) | Yes |
| Material front ring (EF005972) | Metal |
| Colour front ring (EF002429) | Stainless steel |
| Degree of protection (IP) (EF005474) | IP66 |
| Degree of protection (NEMA) (EF011959) | 4X, 13 |
