M30I-FWR3 188137 Y7-188137 EATON ELECTRIC Selector switch actuators, flat front, with control knob, labeled,..
M30I-FWR3
188137
Y7-188137
EATON - MOELLER
1 Pcs.
Automation > Front element for selector switch
Auxiliary Control and Signalling Elements
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview

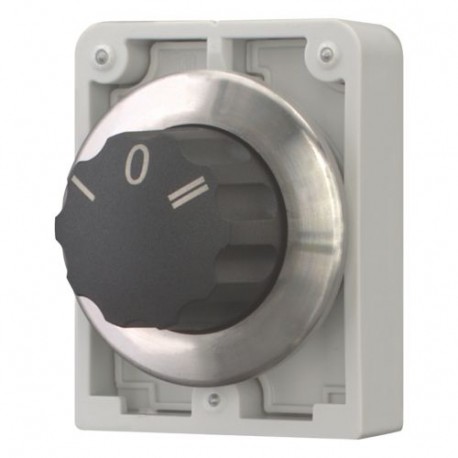

A selector switch actuator with a control knob provides reliable manual input for setting operational parameters or routing signals across industrial automation circuits. This Eaton Moeller M30I-FWR3 component features a flat front design with a stainless steel front ring for enhanced durability.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Number of switch positions (EF000231): 3
- Type of control element (EF006976): Rotating button
- Suitable for lighting (EF001142): No
- Colour control element (EF007167): Black
- Construction type lens (EF006253): Round
- Hole diameter (EF000079): 30 mm
- Width opening (EF004565): 0 mm
- Height opening (EF004778): 0 mm
- Switching function latching (EF007447): Yes
- Spring-return (EF001407): No
- With front ring (EF006014): Yes
- Material front ring (EF005972): Metal
- Colour front ring (EF002429): Stainless steel
- Degree of protection (IP), front side (EF003118): IP66
- Degree of protection (NEMA) (EF011959): 4X, 13
More info
▲General specifications
VDE 0660
Features & Functions
Plunger bridge for the middle contact
General
Ambient conditions, mechanical
15 g, Mechanical, According to IEC/EN 60068-2-27, Sinusoidal shock 11 ms
Climatic environmental conditions
Damp heat, constant, to IEC 60068-2-78
Communication
Yes
Actuator
Switching function latching
