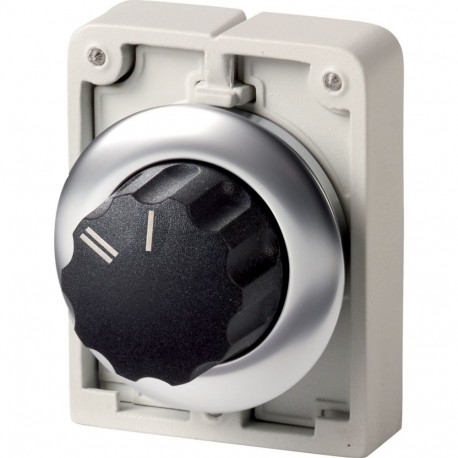

EATON - MOELLER M30I-FWR-X92 M30I-FWR-X92 188191 Y7-188191 EATON ELECTRIC Selector switch actuators, flat front, with control knob, label.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

M30I-FWR-X92 188191 Y7-188191 EATON ELECTRIC Selector switch actuators, flat front, with control knob, label..

M30I-FWR-X92

188191

Y7-188191

EATON - MOELLER

1 Pcs.

Selector switch actuators, flat front, with control knob, labeled, 2 positions, maintained M30I-FWR-X92 Eaton Moeller® series M30 Changeover switch, RMQ-Titan, with rotary head, maintained, 2 positions, inscribed, Front ring stainless steel, II I Changeover switch, Product range: RMQ-Titan, Single unit, Design: with rotary head, maintained, 2 positions, inscribed, Degree of Protection: IP64, Front ring stainless steel, Connection to SmartWire-DT: yes, with SWD-RMQ connections, Front dimensions: Ø 36mm, Instructions: Stay-put/spring-return function, can be changed with coding parts M22-XC-Y, Standards: IEC/EN 60947, VDE 0660, Degree of Protection: IP64

Automation > Front element for selector switch
Auxiliary Control and Signalling Elements

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Eaton Moeller part number M30I-FWR-X92 is a flat front selector switch actuator with a control knob, built for integration into control consoles. These control devices allow operators to toggle between distinct operational modes in heavy industrial applications. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Number of switch positions (EF000231): 2
  • Type of control element (EF006976): Rotating button
  • Suitable for lighting (EF001142): No
  • Colour control element (EF007167): Black
  • Construction type lens (EF006253): Round
  • Hole diameter (EF000079): 30 mm
  • Width opening (EF004565): 0 mm
  • Height opening (EF004778): 0 mm
  • Switching function latching (EF007447): Yes
  • Spring-return (EF001407): No
  • With front ring (EF006014): Yes
  • Material front ring (EF005972): Metal
  • Colour front ring (EF002429): Stainless steel
  • Degree of protection (IP), front side (EF003118): IP66
  • Degree of protection (NEMA) (EF011959): 4X, 13

More info

▲

General specifications

Product Name
Eaton Moeller® series M30 Changeover switch
Catalog Number
188191
Model Code
M30I-FWR-X92
EAN
4015081858514
Product Length/Depth
36 mm
Product Height
47 mm
Product Width
46 mm
Product Weight
0.042 kg
Certifications
VDE 0660
IEC/EN 60947
CSA file No. 012528
CSA Class No.: 3211-03
DNV
UL File No.: E29184
GL
IEC/EN 60947-5
UL 508
CSA-C22.2 No. 14-05
CSA-C22.2 No. 94-91
CE marking
UL Category Control No.: NKCR
UL Listed
CSA certified
