View larger
Images are for illustrative purposes only. Please refer to data sheet for details

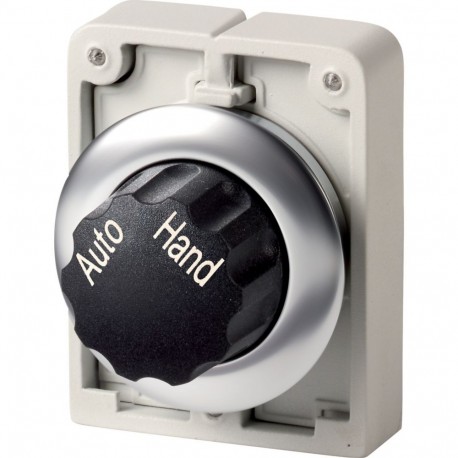

M30I-FWR-X91 188190 Y7-188190 EATON ELECTRIC Selector switch actuators, flat front, with control knob, label..
M30I-FWR-X91
188190
Y7-188190
EATON - MOELLER
1 Pcs.
Selector switch actuators, flat front, with control knob, labeled, 2 positions, maintained
M30I-FWR-X91
Eaton Moeller® series M30 Changeover switch, RMQ-Titan, with rotary head, maintained, 2 positions, inscribed, Front ring stainless steel, AUTO HAND
Changeover switch, Product range: RMQ-Titan, Single unit, Design: with rotary head, maintained, 2 positions, inscribed, Degree of Protection: IP64, Front ring stainless steel, Connection to SmartWire-DT: yes, with SWD-RMQ connections, Front dimensions: Ø 36mm, Instructions: Stay-put/spring-return function, can be changed with coding parts M22-XC-Y, Standards: IEC/EN 60947, VDE 0660, Degree of Protection: IP64
Automation > Front element for selector switch
Auxiliary Control and Signalling Elements
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲General specifications
Product Name
Eaton Moeller® series M30 Changeover switch
Catalog Number
188190
Model Code
M30I-FWR-X91
EAN
4015081858507
Product Length/Depth
36 mm
Product Height
47 mm
Product Width
46 mm
Product Weight
0.042 kg
Certifications
IEC/EN 60947
VDE 0660
VDE 0660
| Feature Name | Feature Value |
|---|---|
| Number of switch positions (EF000231) | 2 |
| Type of control element (EF006976) | Rotating button |
| Suitable for lighting (EF001142) | No |
| Colour control element (EF007167) | Black |
| Colour indicator light cap (EF007165) | Other |
| Construction type lens (EF006253) | Round |
| Hole diameter (EF000079) | 30 mm |
| Width opening (EF004565) | 0 mm |
| Height opening (EF004778) | 0 mm |
| Switching function latching (EF007447) | Yes |
| Spring-return (EF001407) | No |
| With front ring (EF006014) | Yes |
| Material front ring (EF005972) | Metal |
| Colour front ring (EF002429) | Stainless steel |
| Degree of protection (IP), front side (EF003118) | IP66 |
| Degree of protection (NEMA) (EF011959) | 4X, 13 |
