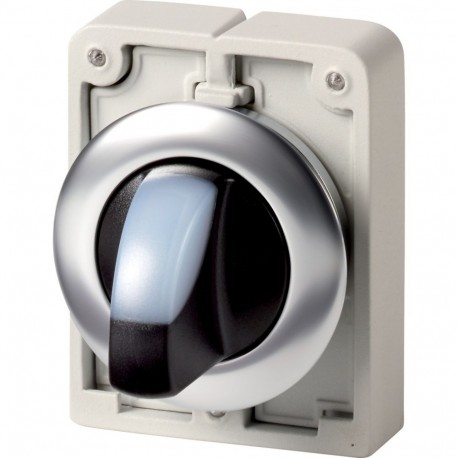

EATON - MOELLER M30I-FWLK-W M30I-FWLK-W 188069 Y7-188069 EATON ELECTRIC Illuminated option keys, flat front, with T-handle, white, 2 pos.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

M30I-FWLK-W 188069 Y7-188069 EATON ELECTRIC Illuminated option keys, flat front, with T-handle, white, 2 pos..

M30I-FWLK-W

188069

Y7-188069

EATON - MOELLER

1 Pcs.

Illuminated option keys, flat front, with T-handle, white, 2 positions, momentary M30I-FWLK-W Eaton Moeller® series M30 Illuminated selector switch actuator, RMQ-Titan, with thumb-grip, momentary, 2 positions, White, Front ring stainless steel Illuminated selector switch actuator, Product range: RMQ-Titan, Single unit, Design: with thumb-grip, momentary, 2 positions, Color Thumb-grip: White, Degree of Protection: IP64, Front ring stainless steel, Connection to SmartWire-DT: yes, with SWD-RMQ connections, Front dimensions: Ø 36mm, Instructions: Stay-put/spring-return function, can be changed with coding parts M22-XC-Y, Standards: IEC/EN 60947, VDE 0660, Degree of Protection: IP64

Automation > Front element for selector switch
Auxiliary Control and Signalling Elements

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Eaton Moeller illuminated option keys component bearing part number M30I-FWLK-W provides low-profile, ergonomic manual switching for advanced industrial automation systems. Flat-front operator units are integrated into modern control desks to streamline faceplates while offering clear visibility and responsive mechanical handling. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Number of switch positions (EF000231): 2
  • Type of control element (EF006976): Toggle
  • Suitable for lighting (EF001142): Yes
  • Colour control element (EF007167): White
  • Colour indicator light cap (EF007165): White
  • Construction type lens (EF006253): Round
  • Hole diameter (EF000079): 30 mm
  • Width opening (EF004565): 0 mm
  • Height opening (EF004778): 0 mm
  • Switching function latching (EF007447): No
  • Spring-return (EF001407): Yes
  • With front ring (EF006014): Yes
  • Material front ring (EF005972): Metal
  • Colour front ring (EF002429): Stainless steel
  • Degree of protection (IP), front side (EF003118): IP66
  • Degree of protection (NEMA) (EF011959): 4X, 13

More info

▲

General specifications

Product Name
Eaton Moeller® series M30 Illuminated selector switch actuator
Catalog Number
188069
Model Code
M30I-FWLK-W
EAN
4015081857487
Product Length/Depth
36 mm
Product Height
47 mm
Product Width
46 mm
Product Weight
0.042 kg
Certifications
IEC/EN 60947
VDE 0660

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
