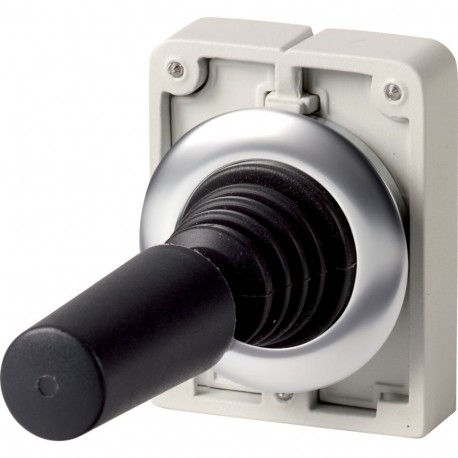

Joystick, flat front, momentary, vertical M30I-FWJS4 Eaton Moeller® series M30 Joystick, RMQ-Titan, with metal shaft, 4 positions, Front ring stainless steel Joystick, Product range: RMQ-Titan, Single unit, Description: with one operating point per operating direction, with metal shaft, 4 positions, Degree of Protection: IP66, Front ring stainless steel, Connection to SmartWire-DT: yes, with SWD-RMQ connections, Front dimensions: Ø 36mm, Function: momentary, in every position, Standards: IEC/EN 60947, VDE 0660

Automation > Control switch, Joystick
Auxiliary Control and Signalling Elements

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A joystick, flat front, momentary, vertical provides a streamlined operator interface for panel installations requiring multi-directional command inputs. These units enable precise manual control over automated actuators and positioning machinery.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Rated operation current Ie at AC-21, 400 V (EF002417): 0 A
  • Centre mounting, hole diameter (EF002424): 30 mm
  • Joy stick length (EF006524): 66 mm
  • Number of actuation directions (EF002425): 4
  • Number of switch positions (EF000231): 1
  • Number of make-and-break contacts per direction (EF005599): 0
  • With retraction in 0-position (EF002428): Yes
  • Locking in 0-position (EF006283): No
  • Coder (EF005666): No
  • Analogue output signal configurable (EF003236): No
  • With front ring (EF006014): Yes
  • Material front ring (EF005972): Metal
  • Colour front ring (EF002429): Stainless steel
  • Degree of protection (IP) (EF005474): IP66
  • Degree of protection (NEMA) (EF011959): 4X, 13

More info

▲

General specifications

Product Name
Eaton Moeller® series M30 Joystick
Catalog Number
188178
Model Code
M30I-FWJS4
EAN
4015081858415
Product Length/Depth
36 mm
Product Height
93 mm
Product Width
46 mm
Product Weight
0.06 kg
Certifications
VDE 0660
IEC/EN 60947

Features & Functions

Bezel color
Stainless steel
Bezel material
Metal
Fitted with:
Filament bulb (24 V)
Front ring
Metal shaft
Retraction in 0-position

General

Degree of protection
IP66
NEMA 4X, 13
Lifespan, mechanical
100,000 Operations
Opening diameter
30 mm
Operating frequency
2000 Operations/h
Product Category
RMQ-Titan
Size
Front dimensions: Ø 36 mm
Type
Joystick

Ambient conditions, mechanical

Mounting position
As required
Shock resistance
15 g, Mechanical, According to IEC/EN 60068-2-27, Sinusoidal shock 11 ms
Mechanical, According to IEC/EN 60068-2-27

Climatic environmental conditions

Ambient operating temperature - min
-25 °C
Ambient operating temperature - max
70 °C
Climatic proofing
Damp heat, constant, to IEC 60068-2-78
Damp heat, cyclic, to IEC 60068-2-30

Electrical rating

Rated operational current (Ie) at AC-21, 400 V, 415 V
0 A

Communication

Connection to SmartWire-DT
With SWD-RMQ connections
Yes

Actuator

Actuating force
5 N
Actuator function
In every position
Momentary
Number of actuation directions
4

Contacts

Force for positive opening - min
0 N

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
