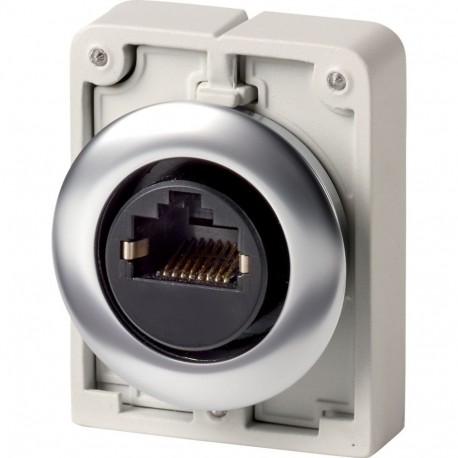

EATON - MOELLER M30I-FRJ45 M30I-FRJ45 188133 EATON ELECTRIC RJ45 interface 30 mm RJ45/RJ45 Ring stainless Flat Front View larger
Images are for illustrative purposes only. Please refer to data sheet for details

M30I-FRJ45 188133 EATON ELECTRIC RJ45 interface 30 mm RJ45/RJ45 Ring stainless Flat Front

M30I-FRJ45

188133

EATON - MOELLER

1 Pcs.

RJ45 interface; 30 mm; RJ45/RJ45; Ring stainless Flat Front Bulkhead interface, RJ45 socket, 8/8, cat. 5e, Front ring stainless steel Bulkhead interface, General accessories, RJ45 socket, 8/8, cat. 5e, Degree of Protection: IP65 (with closed cover), IP20 (with plug connected), Front ring stainless steel, Connection to SmartWire-DT: no, For use with: Front mounting, Number of poles: 9

Automation > Accessories/spare parts for command devices
Auxiliary Control and Signalling Elements

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Eaton Moeller RJ45 interface 30 mm RJ45/RJ45 Ring stainless Flat Front provides clean, panel-mounted pass-through network connectivity for industrial Ethernet communication protocols. Panel interface ports allow technicians to plug programming laptops or diagnostic tools directly into enclosed automation systems without opening cabinet doors.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Accessory (EF013236): No
  • Spare part (EF013237): No

More info

▲
Bulkhead interface, RJ45 socket, 8/8, cat. 5e, Front ring stainless steel
Bulkhead interface, General accessories, RJ45 socket, 8/8, cat. 5e, Degree of Protection: IP65 (with closed cover), IP20 (with plug connected), Front ring stainless steel, Connection to SmartWire-DT: no, For use with: Front mounting, Number of poles: 9

Delivery program

Accessories
General accessories
Basic function accessories
Bulkhead interface, RJ45 socket
RJ45 socket, 8/8, cat. 5e
Degree of Protection
IP65 (with closed cover)
IP20 (with plug connected)
Front ring
Front ring stainless steel
Connection to SmartWire-DT
no
For use with
Front mounting
Terminal diagram / contact assignment

Technical data

Technical data
Nominal voltage [UL]
AC/DC 5V
Voltage range
Max. 30 V
Number of poles
9
Class / category
3.0
Screen earth kit
yes
General
Design
USB 3.0 A
Insulation resistance [RISO]
> ≧ 100 MΩ
Mounting depth:
ca. 70 (incl. Krümmung) mm
Outer cable diameter
6.1 mm

Technical data ETIM 7.0

Low-voltage industrial components (EG000017) / Accessories for control circuit devices (EC002024)
Type of electrical accessory
Other
Type of mechanical accessory
Other

Characteristics

Terminal diagram / contact assignment
