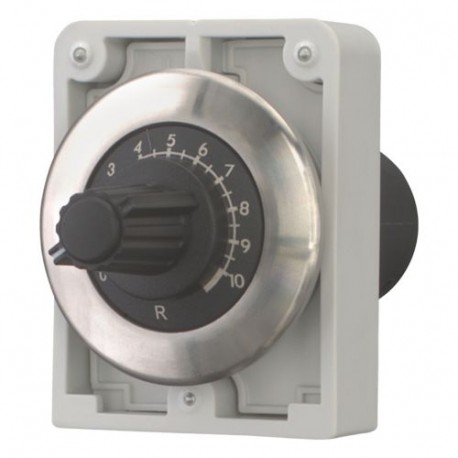

EATON - MOELLER M30I-FR1K M30I-FR1K 188108 Y7-188108 EATON ELECTRIC Potentiometer, flat front, R 1 kOhm View larger
Images are for illustrative purposes only. Please refer to data sheet for details

M30I-FR1K 188108 Y7-188108 EATON ELECTRIC Potentiometer, flat front, R 1 kOhm

M30I-FR1K

188108

Y7-188108

EATON - MOELLER

1 Pcs.

Potentiometer, flat front, R = 1 kOhm M30I-FR1K Eaton Moeller® series M30 Potentiometer, flat front, M30, 30.5 mm, R 1 kΩ, P 0.5 W, Front ring stainless steel Potentiometer, RMQ design: flat front, Part group reference (e.g. DIL): M30, Mounting hole diameter: 30.5 mm, Single unit, Description: 3 individual screw terminals, Accuracy of resistance value: ± 10% (linear), Impedance: R= 1 kΩ, Rated power: P= 0.5 W, Degree of Protection: IP66, Front ring stainless steel, Connection to SmartWire-DT: no, Standards: IEC/EN 60947, VDE 0660

Automation > Potentiometer for command devices
Auxiliary Control and Signalling Elements

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Eaton Moeller part number M30I-FR1K is a flat front potentiometer designed for industrial control enclosures where operators require manual command inputs to modify system variables. These panel-mounted control components allow precise physical tuning of analog reference values within automated production lines.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Resistance (EF002431): 1000 Ohm
  • Power consumption (EF000346): 0.5 W
  • Hole diameter (EF000079): 30 mm
  • Number of revolutions (EF006943): 1
  • Type of electric connection (EF003961): Screw connection
  • Degree of protection (IP) (EF005474): IP66

More info

▲

General specifications

Product Name
Eaton Moeller® series M30 Potentiometer
Catalog Number
188108
Model Code
M30I-FR1K
EAN
4015081857869
Product Length/Depth
36 mm
Product Height
63 mm
Product Width
46 mm
Product Weight
0.055 kg
Certifications
VDE 0660
IEC/EN 60947

Features & Functions

Bezel color
Stainless steel
Design
Flat front
Electric connection type
Screw connection
Fitted with:
3 individual screw terminals

General

Accuracy
± 10 % (linear), Resistance value
Degree of protection
IP66
NEMA Other
Lifespan, mechanical
25,000 Operations
Opening diameter
30 mm
Overvoltage category
III
Pollution degree
3
Rated impulse withstand voltage (Uimp)
4000 V AC
Type
Potentiometer

Ambient conditions, mechanical

Mounting position
As required
Shock resistance
Not planned

Climatic environmental conditions

Ambient operating temperature - min
-25 °C
Ambient operating temperature - max
70 °C
Climatic proofing
Damp heat, cyclic, to IEC 60068-2-30
Damp heat, constant, to IEC 60068-2-78

Terminal capacities

Terminal capacity (solid)
0.5 - 1.5 mm²
Terminal capacity (stranded)
0.5 - 1.5 mm²
Tightening torque
0.5 Nm, Screw terminals

Electrical rating

Power consumption
0.5 W
Rated insulation voltage (Ui)
250 V
Rated power
0.5 VA
Resistance
1000 Ohm

Communication

Connection to SmartWire-DT
No
