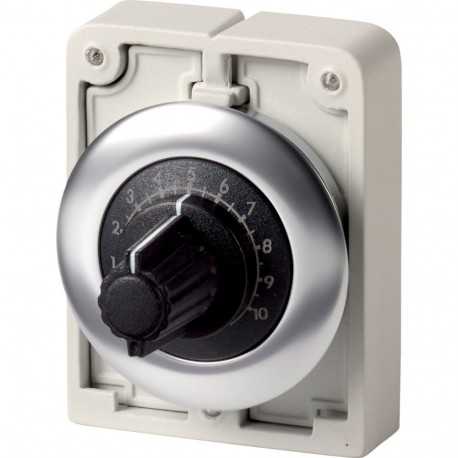

EATON - MOELLER M30I-FR-SWD M30I-FR-SWD 188127 Y7-188127 EATON ELECTRIC Potentiometer, flat front, SWD-ready, front mounting View larger
Images are for illustrative purposes only. Please refer to data sheet for details

M30I-FR-SWD 188127 Y7-188127 EATON ELECTRIC Potentiometer, flat front, SWD-ready, front mounting

M30I-FR-SWD

188127

Y7-188127

EATON - MOELLER

1 Pcs.

Potentiometer, flat front, SWD-ready, front mounting M30I-FR-SWD Eaton Moeller® series M30 Potentiometer, flat front, M30, 30.5 mm, Front ring stainless steel Potentiometer, Subrange: SmartWire-DT RMQ connections, RMQ design: flat front, Part group reference (e.g. DIL): M30, Mounting hole diameter: 30.5 mm, Single unit, Description: Front element SmartWire-DT potentiometer, Only in conjunction with M22-SWD-R function element, Function: For connecting to SmartWire-DT, Degree of Protection: IP65, Front ring stainless steel, Connection to SmartWire-DT: yes, Standards: IEC/EN 60947

Automation > Potentiometer for command devices
Auxiliary Control and Signalling Elements

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Industrial communication networks utilize specialized potentiometers to transmit manual setting data directly to fieldbus architectures for streamlined machine control. This Eaton Moeller unit integrates seamlessly into SmartWire-DT environments for efficient front-panel mounting.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Resistance (EF002431): 0 Ohm
  • Power consumption (EF000346): 0 W
  • Hole diameter (EF000079): 30 mm
  • Number of revolutions (EF006943): 1
  • Type of electric connection (EF003961): Screw connection
  • Degree of protection (IP) (EF005474): IP65

More info

▲

General specifications

Product Name
Eaton Moeller® series M30 Potentiometer
Catalog Number
188127
Model Code
M30I-FR-SWD
EAN
4015081858057
Product Length/Depth
36 mm
Product Height
48 mm
Product Width
46 mm
Product Weight
0.05 kg
Certifications
IEC/EN 60947

Product specifications

Type
Potentiometer
Electric connection type
Screw connection
Climatic proofing
Damp heat, constant, to IEC 60068-2-78
Damp heat, cyclic, to IEC 60068-2-30
Connection to SmartWire-DT
Yes
Bezel color
Stainless steel
Ambient operating temperature - max
70 °C
Ambient operating temperature - min
-30 °C
Ambient storage temperature - max
70 °C
Ambient storage temperature - min
-40 °C
Number of revolutions - max
1
Number of revolutions - min
1
Opening diameter
30 mm
Design
Flat front
Mounting position
As required
Degree of protection
IP65
NEMA Other
Functions
For connecting to SmartWire-DT
Power consumption
0 W
Resistance
0 Ohm
