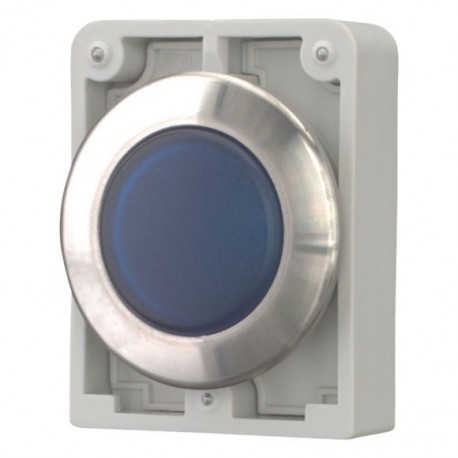

EATON - MOELLER M30I-FL-B-* M30I-FL-B-* 188051 Y7-188051 EATON ELECTRIC Indicator light, flat front, flush, blue, individual facility fo.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

M30I-FL-B-* 188051 Y7-188051 EATON ELECTRIC Indicator light, flat front, flush, blue, individual facility fo..

M30I-FL-B-*

188051

Y7-188051

EATON - MOELLER

1 Pcs.

Indicator light, flat front, flush, blue, individual facility for inscription M30I-FL-B-* Eaton Moeller® series M30 Indicator light, RMQ-Titan, flat, Blue, individual facility for inscription, Front ring stainless steel Indicator light, Product range: RMQ-Titan, Single unit, Design: flat, Color Lens: Blue, Button plate individual facility for inscription, Degree of Protection: IP66, IP67, IP69K, Front ring stainless steel, Connection to SmartWire-DT: yes, with SWD-RMQ connections, Front dimensions: Ø 36mm, Standards: IEC/EN 60947, VDE 0660

Automation > Front element for indicator light
Auxiliary Control and Signalling Elements

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

This Eaton Moeller flat front indicator light provides clear optical signaling for industrial automation systems, electrical switchboards, and machine operator interfaces. Engineers utilize status indicator lamps to communicate operational phases, system readiness, and safety alerts.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Suitable for number of built-in signal lights (EF006669): 1
  • Colour lens (EF000207): Blue
  • Construction type lens (EF006253): Round
  • Hole diameter (EF000079): 30 mm
  • Width opening (EF004565): 0 mm
  • Height opening (EF004778): 30 mm
  • With front ring (EF006014): Yes
  • Material front ring (EF005972): Metal
  • Colour front ring (EF002429): Chrome
  • Type of lens (EF008343): Flat
  • Degree of protection (IP), front side (EF003118): IP67/IP69K
  • Degree of protection (NEMA) (EF011959): 4X, 13

More info

▲

General specifications

Product Name
Eaton Moeller® series M30 Indicator light
Catalog Number
188051
Model Code
M30I-FL-B-*
Product Length/Depth
36 mm
Product Height
32 mm
Product Width
46 mm
Product Weight
0.035 kg
Certifications
IEC/EN 60947
VDE 0660

Features & Functions

Bezel color
Chrome
Bezel material
Metal
Design
Flat
Fitted with:
Front ring
Inscription
Individual inscription possible
Lens color
Blue

General

Degree of protection
NEMA 4X, 13
Degree of protection (front side)
IP67/IP69K
Opening diameter
30 mm
Overvoltage category
III
Pollution degree
3
Product category
RMQ-Titan
Rated impulse withstand voltage (Uimp)
4000 V AC
Size
Front dimensions: Ø 36 mm
Type
Indicator lights

Ambient conditions, mechanical

Mounting position
As required
Shock resistance
Not planned

Climatic environmental conditions

Ambient operating temperature - min
-25 °C
Ambient operating temperature - max
70 °C
Climatic proofing
Damp heat, cyclic, to IEC 60068-2-30
Damp heat, constant, to IEC 60068-2-78

Terminal capacities

Terminal capacity
0.5 - 1.5 mm², solid
0.5 - 1.5 mm², stranded

Electrical rating

Rated insulation voltage (Ui)
250 V

Communication

Connection to SmartWire-DT
With SWD-RMQ connections
Yes

Contacts

Force for positive opening - min
0 N
