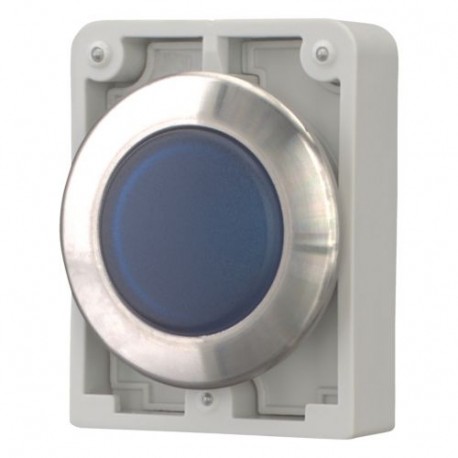

EATON - MOELLER M30I-FL-B M30I-FL-B 188045 Y7-188045 EATON ELECTRIC Indicator light, flat front, flush, blue View larger
Images are for illustrative purposes only. Please refer to data sheet for details

M30I-FL-B 188045 Y7-188045 EATON ELECTRIC Indicator light, flat front, flush, blue

M30I-FL-B

188045

Y7-188045

EATON - MOELLER

1 Pcs.

Indicator light, flat front, flush, blue M30I-FL-B Eaton Moeller® series M30 Indicator light, RMQ-Titan, flat, Blue, Front ring stainless steel Indicator light, Product range: RMQ-Titan, Single unit, Design: flat, Color Lens: Blue, Degree of Protection: IP66, IP67, IP69K, Front ring stainless steel, Connection to SmartWire-DT: yes, with SWD-RMQ connections, Front dimensions: Ø 36mm, Standards: IEC/EN 60947, VDE 0660

Automation > Front element for indicator light
Auxiliary Control and Signalling Elements

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Eaton Moeller indicator light, part number M30I-FL-B, is engineered for flush mounting on industrial control boards, operator consoles, and automation enclosures to communicate visual alerts and operational modes. These devices deliver reliable status signaling in demanding manufacturing environments. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Suitable for number of built-in signal lights (EF006669): 1
  • Colour lens (EF000207): Blue
  • Construction type lens (EF006253): Round
  • Hole diameter (EF000079): 30 mm
  • Width opening (EF004565): 0 mm
  • Height opening (EF004778): 30 mm
  • With front ring (EF006014): Yes
  • Material front ring (EF005972): Metal
  • Colour front ring (EF002429): Chrome
  • Type of lens (EF008343): Flat
  • Degree of protection (IP), front side (EF003118): IP67/IP69K
  • Degree of protection (NEMA) (EF011959): 4X, 13

More info

▲

General specifications

Product Name
Eaton Moeller® series M30 Indicator light
Catalog Number
188045
Model Code
M30I-FL-B
EAN
4015081857302
Product Length/Depth
36 mm
Product Height
32 mm
Product Width
46 mm
Product Weight
0.035 kg
Certifications
IEC/EN 60947
VDE 0660

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
