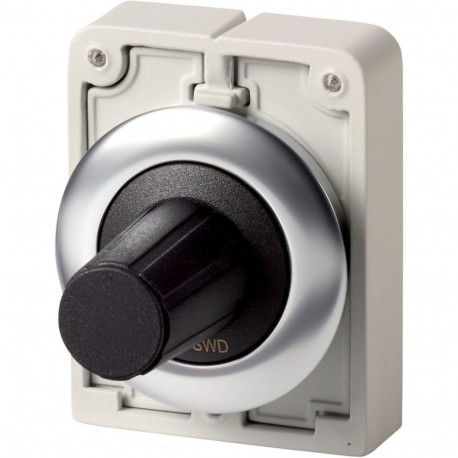

EATON - MOELLER M30I-FINC-SWD M30I-FINC-SWD 188126 Y7-188126 EATON ELECTRIC SWD encoder, front element, flat front View larger
Images are for illustrative purposes only. Please refer to data sheet for details

M30I-FINC-SWD 188126 Y7-188126 EATON ELECTRIC SWD encoder, front element, flat front

M30I-FINC-SWD

188126

Y7-188126

EATON - MOELLER

1 Pcs.

SWD encoder, front element, flat front M30I-FINC-SWD Eaton Moeller® series M30 SWD incremental encoder, Front ring stainless steel SWD incremental encoder, RMQ design: flat front, M30, Mounting hole diameter: 30.5 mm, Degree of Protection: IP65, Front ring: stainless steel, Connection to SmartWire-DT: yes, Standards: IEC/EN 60947, Mounting position: As required

Automation > Accessories/spare parts for low-voltage switch technology
Auxiliary Control and Signalling Elements

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Eaton Moeller M30I-FINC-SWD SmartWire-DT encoder front element provides streamlined communication and interface connectivity for modular industrial control stations. Front-element accessories are commonly implemented in factory automation networks to integrate rotary data inputs directly into digital bus architectures. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Accessory (EF013236): No
  • Spare part (EF013237): No

More info

▲

General specifications

Product Name
Eaton Moeller® series M30 SWD encoder
Catalog Number
188126
Model Code
M30I-FINC-SWD
EAN
4015081858040
Product Length/Depth
36 mm
Product Height
53 mm
Product Width
46 mm
Product Weight
0.055 kg
Certifications
IEC/EN 60947
Catalog Notes
Front element SmartWire-DT potentiometer

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
