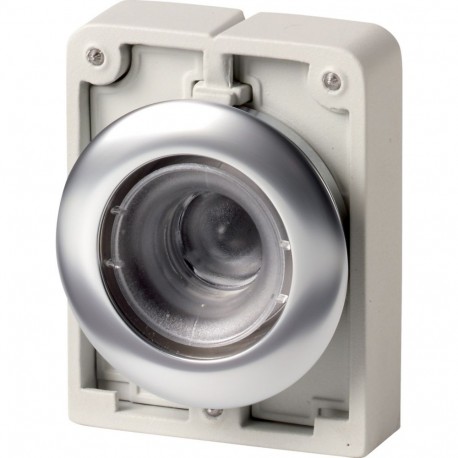

EATON - MOELLER M30I-FDRL-X M30I-FDRL-X 188031 Y7-188031 EATON ELECTRIC Illuminated push-buttons, flat front, flush, maintained, without.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

M30I-FDRL-X 188031 Y7-188031 EATON ELECTRIC Illuminated push-buttons, flat front, flush, maintained, without..

M30I-FDRL-X

188031

Y7-188031

EATON - MOELLER

1 Pcs.

Illuminated push-buttons, flat front, flush, maintained, without button plate M30I-FDRL-X Eaton Moeller® series M30 Illuminated pushbutton actuator, RMQ-Titan, flat, maintained, Front ring stainless steel Illuminated pushbutton actuator, Product range: RMQ-Titan, Single unit, Design: flat, maintained, Degree of Protection: IP66, IP67, IP69, Front ring stainless steel, Connection to SmartWire-DT: yes, with SWD-RMQ connections, Front dimensions: Ø 36mm, Instructions: Stay-put/spring-return function can be changed on device, Standards: IEC/EN 60947, VDE 0660

Automation > Front element for push button
Auxiliary Control and Signalling Elements

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

General specifications

Product Name
Eaton Moeller® series M30 Illuminated pushbutton actuator
Catalog Number
188031
Model Code
M30I-FDRL-X
EAN
4015081857166
Product Length/Depth
36 mm
Product Height
30 mm
Product Width
46 mm
Product Weight
0.041 kg
Certifications
IEC/EN 60947
VDE 0660
CSA File No.: 012528
CSA Class No.: 3211-03
DNV
UL File No.: E29184
GL
IEC/EN 60947-5
UL 508
CSA-C22.2 No. 14-05 and 94-M91
CE marking
UL Category Control No.: NKCR
UL Listed
CSA certified

ETIM for 188031 Low-voltage industrial controls and switchgear (EC000221)
Feature Name Feature Value
Colour button (EF000190) Without button plate
Number of command positions (EF001372) 1
Construction type lens (EF006253) Round
Hole diameter (EF000079) 30.5 mm
Width opening (EF004565) 0 mm
Height opening (EF004778) 0 mm
Type of button (EF001546) Flat
Suitable for lighting (EF001142) Yes
With protective cover (EF005500) No
Labelled (EF001537) No
Switching function latching (EF007447) Yes
Spring-return (EF001407) No
With front ring (EF006014) Yes
Material front ring (EF005972) Metal
Colour front ring (EF002429) Stainless steel
Degree of protection (IP), front side (EF003118) IP67
Degree of protection (NEMA), front side (EF011961) 4X, 13
