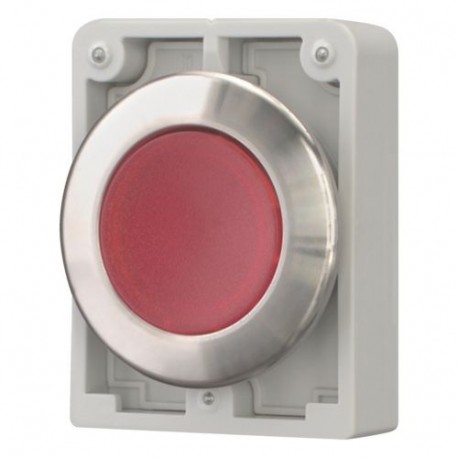

M30I-FDRL-R 188066 Y7-188066 EATON ELECTRIC Illuminated push-buttons, flat front, flush, maintained, red, bl..
M30I-FDRL-R
188066
Y7-188066
EATON - MOELLER
1 Pcs.
Automation > Front element for push button
Auxiliary Control and Signalling Elements
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Eaton Moeller M30I-FDRL-R is an illuminated push-button engineered for robust integration into industrial control consoles, automation machinery, and electrical switchgear. It combines optical status indication with maintained switching functionality for complex operational workflows.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Colour button (EF000190): Red
- Number of command positions (EF001372): 1
- Construction type lens (EF006253): Round
- Hole diameter (EF000079): 30.5 mm
- Width opening (EF004565): 0 mm
- Height opening (EF004778): 0 mm
- Type of button (EF001546): Flat
- Suitable for lighting (EF001142): Yes
- With protective cover (EF005500): No
- Labelled (EF001537): No
- Switching function latching (EF007447): Yes
- Spring-return (EF001407): No
- With front ring (EF006014): Yes
- Material front ring (EF005972): Metal
- Colour front ring (EF002429): Stainless steel
- Degree of protection (IP), front side (EF003118): IP67
More info
▲General specifications
VDE 0660
CSA File No.: 012528
CSA Class No.: 3211-03
DNV
UL File No.: E29184
GL
IEC/EN 60947-5
UL 508
CSA-C22.2 No. 14-05 and 94-M91
CE marking
UL Category Control No.: NKCR
UL Listed
CSA certified
