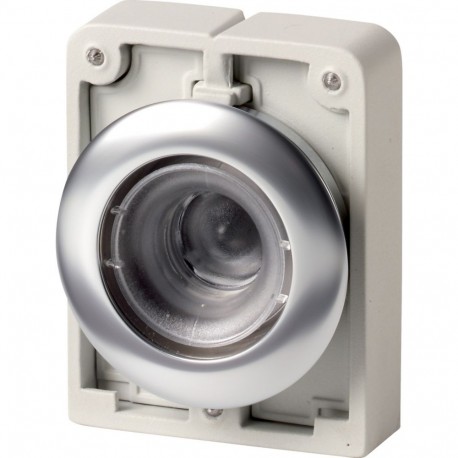

EATON - MOELLER M30I-FDR-X M30I-FDR-X 188098 Y7-188098 EATON ELECTRIC Push-buttons, flat front, flush, maintained, without button plate View larger
Images are for illustrative purposes only. Please refer to data sheet for details

M30I-FDR-X 188098 Y7-188098 EATON ELECTRIC Push-buttons, flat front, flush, maintained, without button plate

M30I-FDR-X

188098

Y7-188098

EATON - MOELLER

1 Pcs.

Push-buttons, flat front, flush, maintained, without button plate M30I-FDR-X Eaton Moeller® series M30 Pushbutton, RMQ-Titan, flat, maintained, Front ring stainless steel Pushbutton, Product range: RMQ-Titan, Single unit, Design: flat, maintained, Degree of Protection: IP66, IP67, IP69, Front ring stainless steel, Connection to SmartWire-DT: yes, with SWD-RMQ connections, Front dimensions: Ø 36 x 3mm, Instructions: Stay-put/spring-return function can be changed on device, Standards: IEC/EN 60947, VDE 0660

Automation > Front element for push button
Auxiliary Control and Signalling Elements

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Eaton Moeller M30I-FDR-X push-button actuator is designed for custom industrial control applications, offering a flat front aesthetic without a pre-mounted button plate so technicians can configure specific operator interfaces. These modular units are standard in advanced automation panels and heavy industrial machinery.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Colour button (EF000190): Without button plate
  • Number of command positions (EF001372): 1
  • Construction type lens (EF006253): Round
  • Hole diameter (EF000079): 30.5 mm
  • Width opening (EF004565): 0 mm
  • Height opening (EF004778): 0 mm
  • Type of button (EF001546): Flat
  • Suitable for lighting (EF001142): No
  • With protective cover (EF005500): No
  • Labelled (EF001537): No
  • Switching function latching (EF007447): Yes
  • Spring-return (EF001407): No
  • With front ring (EF006014): Yes
  • Material front ring (EF005972): Metal
  • Colour front ring (EF002429): Stainless steel
  • Degree of protection (IP), front side (EF003118): IP67

More info

▲

General specifications

Product Name
Eaton Moeller® series M30 Pushbutton
Catalog Number
188098
Model Code
M30I-FDR-X
EAN
4015081857760
Product Length/Depth
36 mm
Product Height
30 mm
Product Width
46 mm
Product Weight
0.041 kg
Certifications
IEC/EN 60947
VDE 0660
CSA File No.: 012528
CSA Class No.: 3211-03
DNV
UL File No.: E29184
GL
IEC/EN 60947-5
UL 508
CSA-C22.2 No. 14-05 and 94-M91
CE marking
UL Category Control No.: NKCR
UL Listed
CSA certified
