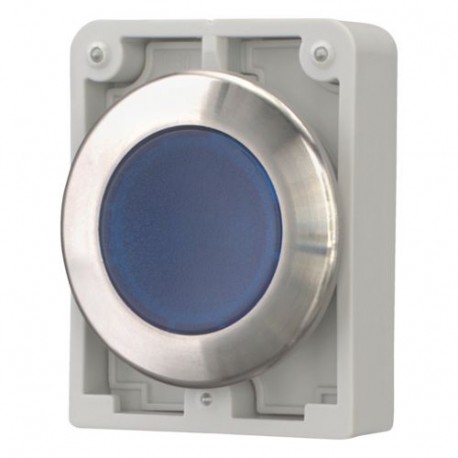

M30I-FDL-B 188062 Y7-188062 EATON ELECTRIC Illuminated push-button actuator, flat front, flush, momentary, b..
M30I-FDL-B
188062
Y7-188062
EATON - MOELLER
1 Pcs.
Automation > Front element for push button
Auxiliary Control and Signalling Elements
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Eaton Moeller M30I-FDL-B illuminated push-button actuator is designed for flush installation in industrial control panels, offering operators a dependable tactile interface with integrated lighting capabilities. It is commonly deployed on machine control desks for momentary command inputs. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Colour button (EF000190): Blue
- Number of command positions (EF001372): 1
- Construction type lens (EF006253): Round
- Hole diameter (EF000079): 30.5 mm
- Width opening (EF004565): 0 mm
- Height opening (EF004778): 0 mm
- Type of button (EF001546): Flat
- Suitable for lighting (EF001142): Yes
- With protective cover (EF005500): No
- Labelled (EF001537): No
- Switching function latching (EF007447): No
- Spring-return (EF001407): Yes
- With front ring (EF006014): Yes
- Material front ring (EF005972): Metal
- Colour front ring (EF002429): Stainless steel
- Degree of protection (IP), front side (EF003118): IP67
More info
▲General specifications
VDE 0660
CSA File No.: 012528
CSA Class No.: 3211-03
DNV
UL File No.: E29184
GL
IEC/EN 60947-5
UL 508
CSA-C22.2 No. 14-05 and 94-M91
CE marking
UL Category Control No.: NKCR
UL Listed
CSA certified
