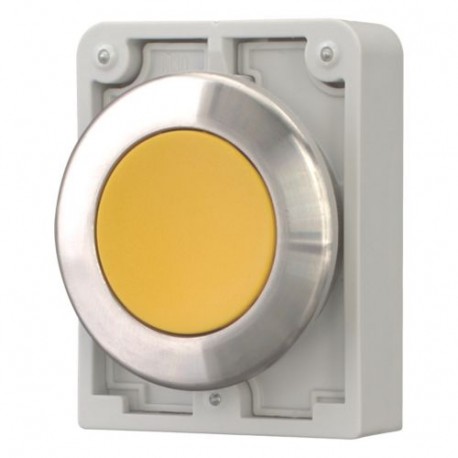

EATON - MOELLER M30I-FD-Y M30I-FD-Y 188088 Y7-188088 EATON ELECTRIC Push-buttons, flat front, flush, momentary, yellow, blank View larger
Images are for illustrative purposes only. Please refer to data sheet for details

M30I-FD-Y 188088 Y7-188088 EATON ELECTRIC Push-buttons, flat front, flush, momentary, yellow, blank

M30I-FD-Y

188088

Y7-188088

EATON - MOELLER

1 Pcs.

Push-buttons, flat front, flush, momentary, yellow, blank M30I-FD-Y Eaton Moeller® series M30 Pushbutton, RMQ-Titan, flat, momentary, yellow, blank, Front ring stainless steel Pushbutton, Product range: RMQ-Titan, Single unit, Design: flat, momentary, button plate: yellow, Button plate blank, Degree of Protection: IP66, IP67, IP69, Front ring stainless steel, Connection to SmartWire-DT: yes, with SWD-RMQ connections, Front dimensions: Ø 36 x 3mm, Standards: IEC/EN 60947, VDE 0660

Automation > Front element for push button
Auxiliary Control and Signalling Elements

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Eaton Moeller M30I-FD-Y is a push-button designed for integration into control consoles, operator desks, and machinery enclosures. This type of interface hardware provides temporary control signals to initiate momentary functions or routine transitions in automated production environments.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Colour button (EF000190): Yellow
  • Number of command positions (EF001372): 1
  • Construction type lens (EF006253): Round
  • Hole diameter (EF000079): 30.5 mm
  • Width opening (EF004565): 0 mm
  • Height opening (EF004778): 0 mm
  • Type of button (EF001546): Flat
  • Suitable for lighting (EF001142): No
  • With protective cover (EF005500): No
  • Labelled (EF001537): No
  • Switching function latching (EF007447): No
  • Spring-return (EF001407): Yes
  • With front ring (EF006014): Yes
  • Material front ring (EF005972): Metal
  • Colour front ring (EF002429): Stainless steel
  • Degree of protection (IP), front side (EF003118): IP67

More info

▲

General specifications

Product Name
Eaton Moeller® series M30 Pushbutton
Catalog Number
188088
Model Code
M30I-FD-Y
EAN
4015081857661
Product Length/Depth
36 mm
Product Height
30 mm
Product Width
46 mm
Product Weight
0.041 kg
Certifications
IEC/EN 60947
VDE 0660
CSA File No.: 012528
CSA Class No.: 3211-03
DNV
UL File No.: E29184
GL
IEC/EN 60947-5
UL 508
CSA-C22.2 No. 14-05 and 94-M91
CE marking
UL Category Control No.: NKCR
UL Listed
CSA certified
