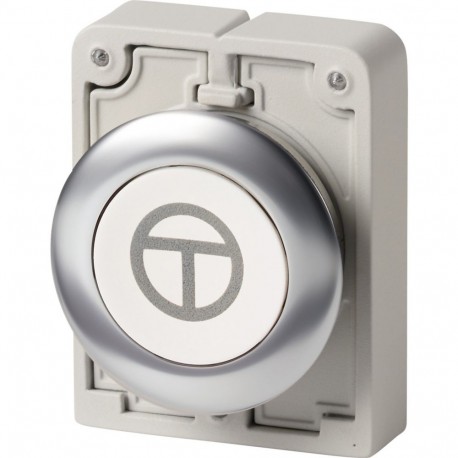

EATON - MOELLER M30I-FD-W-X11 M30I-FD-W-X11 188056 Y7-188056 EATON ELECTRIC Push-buttons, flat front, flush, momentary, white, labeled View larger
Images are for illustrative purposes only. Please refer to data sheet for details

M30I-FD-W-X11 188056 Y7-188056 EATON ELECTRIC Push-buttons, flat front, flush, momentary, white, labeled

M30I-FD-W-X11

188056

Y7-188056

EATON - MOELLER

1 Pcs.

Push-buttons, flat front, flush, momentary, white, labeled M30I-FD-W-X11 Eaton Moeller® series M30 Pushbutton, RMQ-Titan, flat, momentary, White, inscribed, Front ring stainless steel, ON/OFF Pushbutton, Product range: RMQ-Titan, Single unit, Design: flat, momentary, button plate: White, Button plate inscribed, Degree of Protection: IP66, IP67, IP69, Front ring stainless steel, Connection to SmartWire-DT: yes, with SWD-RMQ connections, Standards: IEC/EN 60947, VDE 0660

Automation > Front element for push button
Auxiliary Control and Signalling Elements

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Eaton Moeller M30I-FD-W-X11 flat front push-button provides a streamlined operator interface for modern industrial control enclosures, featuring clear labelling for precise command execution. Flush-mounted pushbuttons are essential components on automation consoles where clean design and ergonomic operation intersect.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Colour button: White
  • Number of command positions: 1
  • Construction type lens: Round
  • Hole diameter: 30.5 mm
  • Width opening: 0 mm
  • Height opening: 0 mm
  • Type of button: Flat
  • Suitable for lighting: No
  • With protective cover: No
  • Labelled: Yes
  • Switching function latching: No
  • Spring-return: Yes
  • With front ring: Yes
  • Material front ring: Metal
  • Colour front ring: Stainless steel
  • Degree of protection (IP), front side: IP67

More info

▲

General specifications

Product Name
Eaton Moeller® series M30 Pushbutton
Catalog Number
188056
Model Code
M30I-FD-W-X11
EAN
4015081857357
Product Length/Depth
36 mm
Product Height
30 mm
Product Width
46 mm
Product Weight
0.041 kg
Certifications
IEC/EN 60947
VDE 0660
CSA File No.: 012528
CSA Class No.: 3211-03
DNV
UL File No.: E29184
GL
IEC/EN 60947-5
UL 508
CSA-C22.2 No. 14-05 and 94-M91
CE marking
UL Category Control No.: NKCR
UL Listed
CSA certified
