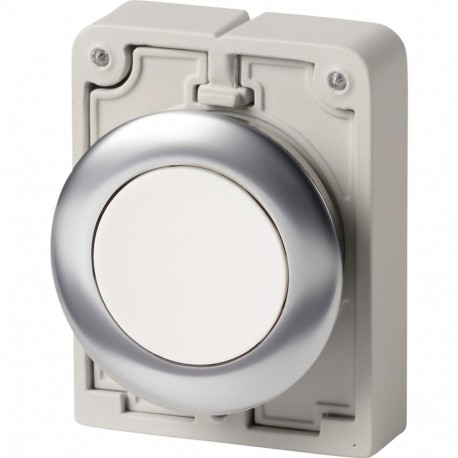

EATON - MOELLER M30I-FD-W M30I-FD-W 188085 Y7-188085 EATON ELECTRIC Push-buttons, flat front, flush, momentary, white, blank View larger
Images are for illustrative purposes only. Please refer to data sheet for details

M30I-FD-W 188085 Y7-188085 EATON ELECTRIC Push-buttons, flat front, flush, momentary, white, blank

M30I-FD-W

188085

Y7-188085

EATON - MOELLER

1 Pcs.

Push-buttons, flat front, flush, momentary, white, blank M30I-FD-W Eaton Moeller® series M30 Pushbutton, RMQ-Titan, flat, momentary, White, blank, Front ring stainless steel Pushbutton, Product range: RMQ-Titan, Single unit, Design: flat, momentary, button plate: White, Button plate blank, Degree of Protection: IP66, IP67, IP69, Front ring stainless steel, Connection to SmartWire-DT: yes, with SWD-RMQ connections, Front dimensions: Ø 36 x 3mm, Standards: IEC/EN 60947, VDE 0660

Automation > Front element for push button
Auxiliary Control and Signalling Elements

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Eaton Moeller M30I-FD-W 188085 Y7-188085 EATON ELECTRIC Push-buttons, flat front, flush, momentary, white, blank is a flush-mounted operator switch applied in control panels to facilitate temporary electrical contact for machine automation. Spring-return mechanisms ensure the contact resets instantly after release.

Exact pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Colour button (EF000190): White
  • Number of command positions (EF001372): 1
  • Construction type lens (EF006253): Round
  • Hole diameter (EF000079): 30.5 mm
  • Width opening (EF004565): 0 mm
  • Height opening (EF004778): 0 mm
  • Type of button (EF001546): Flat
  • Suitable for lighting (EF001142): No
  • With protective cover (EF005500): No
  • Labelled (EF001537): No
  • Switching function latching (EF007447): No
  • Spring-return (EF001407): Yes
  • With front ring (EF006014): Yes
  • Material front ring (EF005972): Metal
  • Colour front ring (EF002429): Stainless steel
  • Degree of protection (IP), front side (EF003118): IP67

More info

▲

General specifications

Product Name
Eaton Moeller® series M30 Pushbutton
Catalog Number
188085
Model Code
M30I-FD-W
EAN
4015081857630
Product Length/Depth
36 mm
Product Height
30 mm
Product Width
46 mm
Product Weight
0.041 kg
Certifications
IEC/EN 60947
VDE 0660
CSA File No.: 012528
CSA Class No.: 3211-03
DNV
UL File No.: E29184
GL
IEC/EN 60947-5
UL 508
CSA-C22.2 No. 14-05 and 94-M91
CE marking
UL Category Control No.: NKCR
UL Listed
CSA certified
