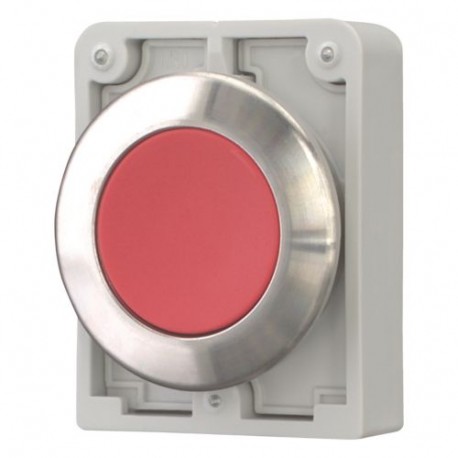

EATON - MOELLER M30I-FD-R M30I-FD-R 188086 Y7-188086 EATON ELECTRIC Push-buttons, flat front, flush, momentary, red, blank View larger
Images are for illustrative purposes only. Please refer to data sheet for details

M30I-FD-R 188086 Y7-188086 EATON ELECTRIC Push-buttons, flat front, flush, momentary, red, blank

M30I-FD-R

188086

Y7-188086

EATON - MOELLER

1 Pcs.

Push-buttons, flat front, flush, momentary, red, blank M30I-FD-R Eaton Moeller® series M30 Pushbutton, RMQ-Titan, flat, momentary, red, blank, Front ring stainless steel Pushbutton, Product range: RMQ-Titan, Single unit, Design: flat, momentary, button plate: red, Button plate blank, Degree of Protection: IP66, IP67, IP69, Front ring stainless steel, Connection to SmartWire-DT: yes, with SWD-RMQ connections, Front dimensions: Ø 36 x 3mm, Standards: IEC/EN 60947, VDE 0660

Automation > Front element for push button
Auxiliary Control and Signalling Elements

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

General specifications

Product Name
Eaton Moeller® series M30 Pushbutton
Catalog Number
188086
Model Code
M30I-FD-R
EAN
4015081857647
Product Length/Depth
36 mm
Product Height
30 mm
Product Width
46 mm
Product Weight
0.041 kg
Certifications
VDE 0660
IEC/EN 60947
CSA File No.: 012528
CSA Class No.: 3211-03
DNV
UL File No.: E29184
GL
IEC/EN 60947-5
UL 508
CSA-C22.2 No. 14-05 and 94-M91
CE marking
UL Category Control No.: NKCR
UL Listed
CSA certified

Product specifications

Type
Pushbutton actuator
Actuator color
Red
Actuator function
Spring-return
Momentary
Fitted with:
Front ring
Operating frequency
3600 Operations/h
Climatic proofing
Damp heat, cyclic, to IEC 60068-2-30
Damp heat, constant, to IEC 60068-2-78
Connection to SmartWire-DT
Yes
With SWD-RMQ connections
Actuating force
5 N
Ambient operating temperature - max
70 °C
Ambient operating temperature - min
-25 °C
Ambient storage temperature - max
80 °C
Ambient storage temperature - min
-40 °C
Force for positive opening - min
0 N
Number of command positions
1
Opening diameter
30.5 mm
Opening height
0 mm
Bezel color
Stainless steel
Shock resistance
15 g, Mechanical, According to IEC/EN 60068-2-27, Sinusoidal shock 11 ms
Mechanical, According to IEC/EN 60068-2-27
Bezel material
Metal
Design
Flat
Flat front
Mounting position
As required
Degree of protection
IP66
IP69
IP67
Degree of protection (front side)
IP67
NEMA 4X, 13
Inscription
Blank
Front element type
Flat
Lens type
Round
Lifespan, mechanical
5,000,000 Operations
Width opening
0 mm
Product category
RMQ-Titan
Size
Front dimensions: Ø 36 x 3 mm

ETIM for 188086 Low-voltage industrial controls and switchgear (EC000221)
Feature Name Feature Value
Colour button (EF000190) Red
Number of command positions (EF001372) 1
Construction type lens (EF006253) Round
Hole diameter (EF000079) 30.5 mm
Width opening (EF004565) 0 mm
Height opening (EF004778) 0 mm
Type of button (EF001546) Flat
Suitable for lighting (EF001142) No
With protective cover (EF005500) No
Labelled (EF001537) No
Switching function latching (EF007447) No
Spring-return (EF001407) Yes
With front ring (EF006014) Yes
Material front ring (EF005972) Metal
Colour front ring (EF002429) Stainless steel
Degree of protection (IP), front side (EF003118) IP67
Degree of protection (NEMA), front side (EF011961) 4X, 13
