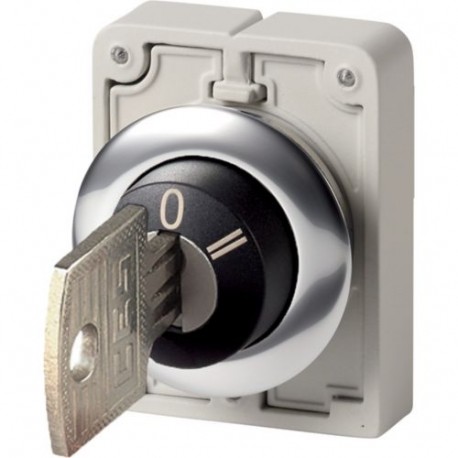

M30C-FWS3-SA(*)-* 187071 Y7-187071 EATON ELECTRIC Key-operated actuators, Flat Front, suitable for master ke..
M30C-FWS3-SA(*)-*
187071
Y7-187071
EATON - MOELLER
1 Pcs.
Automation > Front element for selector switch
Auxiliary Control and Signalling Elements
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Built as an M30C-FWS3-SA(*)-* 187071 Y7-187071 EATON ELECTRIC Key-operated actuators, Flat Front, suitable for master ke.., this component provides secure manual control for industrial machinery and automation panels. Key actuators are standard choices for applications needing restricted access to prevent unauthorized operational adjustments.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Number of switch positions (EF000231): 3
- Type of control element (EF006976): Key
- Suitable for lighting (EF001142): No
- Colour control element (EF007167): Black
- Construction type lens (EF006253): Round
- Hole diameter (EF000079): 30 mm
- Width opening (EF004565): 0 mm
- Height opening (EF004778): 0 mm
- Switching function latching (EF007447): No
- Spring-return (EF001407): Yes
- With front ring (EF006014): Yes
- Material front ring (EF005972): Metal
- Colour front ring (EF002429): Chrome
- Degree of protection (IP), front side (EF003118): IP64
- Degree of protection (NEMA) (EF011959): 4X, 13
More info
▲General specifications
VDE 0660
CSA file No. 012528
CSA Class No.: 3211-03
DNV
UL File No.: E29184
GL
IEC/EN 60947-5
UL 508
CSA-C22.2 No. 14-05
CSA-C22.2 No. 94-91
CE marking
UL Category Control No.: NKCR
UL Listed
CSA certified
Features & Functions
Flat front
General
Ambient conditions, mechanical
15 g, Mechanical, According to IEC/EN 60068-2-27, Sinusoidal shock 11 ms
Climatic environmental conditions
Damp heat, constant, to IEC 60068-2-78
Communication
With SWD-RMQ connections
Actuator
Momentary
Key withdrawable in position 0
