EATON - MOELLER M30C-FWS-SA(*)-* M30C-FWS-SA(*)-* 187076 Y7-187076 EATON ELECTRIC Key-operated actuators, Flat Front, suitable for master key.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

M30C-FWS-SA(*)-* 187076 Y7-187076 EATON ELECTRIC Key-operated actuators, Flat Front, suitable for master key..

M30C-FWS-SA(*)-*

187076

Y7-187076

EATON - MOELLER

1 Pcs.

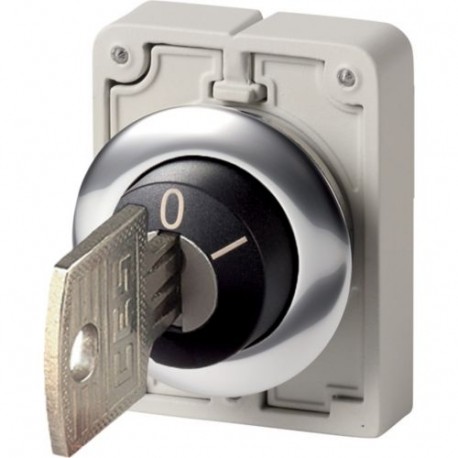

Key-operated actuators, Flat Front, suitable for master key systems, 2 positions, momentary M30C-FWS-SA(*)-* Key-operated actuator, Flat Front, momentary, 2 positions 0, Metal bezel, Suitable for master key systems Key-operated actuator, Product range: RMQ-Titan, Single unit, Design: key operation lock mechanism, momentary, Suitable for master key systems, 2 positions, Degree of Protection: IP64, Metal bezel, Connection to SmartWire-DT: yes, with SWD-RMQ connections, Front dimensions: Ø 36 mm, with two keys, Standards: IEC/EN 60947, VDE 0660, Degree of Protection: IP64

Automation > Front element for selector switch
Auxiliary Control and Signalling Elements

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Key-operated actuator, Flat Front, momentary, 2 positions 0, Metal bezel, Suitable for master key systems
Key-operated actuator, Product range: RMQ-Titan, Single unit, Design: key operation lock mechanism, momentary, Suitable for master key systems, 2 positions, Degree of Protection: IP64, Metal bezel, Connection to SmartWire-DT: yes, with SWD-RMQ connections, Front dimensions: Ø 36 mm, with two keys, Standards: IEC/EN 60947, VDE 0660, Degree of Protection: IP64

General specifications
Product name
Eaton Moeller® series M30 Key-operated actuator
Part no.
M30C-FWS-SA(*)-*
Product Length/Depth
36 millimetre
Product height
75 millimetre
Product width
46 millimetre
Product weight
0.085 kilogram
Certifications
VDE 0660
IEC/EN 60947
Product Tradename
M30
Product Type
Key-operated actuator
Product Sub Type
None
Features & Functions
Bezel color
Titanium
Bezel material
Metal
Design
Key operation lock mechanism
Fitted with:
Front ring
General information
Accessories
2 keys included with supplied equipment.
Degree of protection
NEMA 4X, 13
Degree of protection (front side)
IP66
Lifespan, mechanical
100,000 Operations
Opening diameter
30 mm
Operating frequency
100 Operations/h
Operating torque
0.5 N·m
Product category
RMQ-Titan
Size
Front dimensions: Ø 36 mm
Suitable for
Master key systems
Switching angle
40 °
Type
Key-operated button
Ambient conditions, mechanical
Mounting position
As required
Shock resistance
15 g, Mechanical, According to IEC/EN 60068-2-27, Sinusoidal shock 11 ms
Mechanical, According to IEC/EN 60068-2-27
Climatic environmental conditions
Ambient operating temperature - min
-25 °C
Ambient operating temperature - max
70 °C
Climatic proofing
Damp heat, constant, to IEC 60068-2-78
Damp heat, cyclic, to IEC 60068-2-30
Communication
Connection to SmartWire-DT
With SWD-RMQ connections
Yes
Actuator
Actuator color
Black
Actuator function
Spring-return
Key withdrawable in position 0
Momentary
Actuator type
Key
Number of switch positions
2
Contacts
Force for positive opening - min
0 N

Technical data ETIM 9.0

Low-voltage industrial components (EG000017) / Front element for selector switch (EC000222)
Electric engineering, automation, process control engineering / Low-voltage switch technology / Command and alarm device / Front element for selector switches (ecl@ss13-27-37-12-13 [AKF031019])
Number of switch positions
2
Type of control element
Key
Suitable for illumination
No
Colour control element
Black
Colour indicator light cap
Other
Construction type lens
Round
Hole diameter
30 mm
Width opening
0 mm
Height opening
0 mm
Switching function latching
No
Spring-return
Yes
With front ring
Yes
Material front ring
Metal
Colour front ring
Titanium
Degree of protection (IP), front side
IP66
Degree of protection (NEMA)
4X, 13

ETIM for 187076 Low-voltage industrial controls and switchgear (EC000222)
Feature Name Feature Value
Number of switch positions (EF000231) 2
Type of control element (EF006976) Key
Suitable for lighting (EF001142) No
Colour control element (EF007167) Black
Colour indicator light cap (EF007165) Other
Construction type lens (EF006253) Round
Hole diameter (EF000079) 30 mm
Width opening (EF004565) 0 mm
Height opening (EF004778) 0 mm
Switching function latching (EF007447) No
Spring-return (EF001407) Yes
With front ring (EF006014) Yes
Material front ring (EF005972) Metal
Colour front ring (EF002429) Chrome
Degree of protection (IP), front side (EF003118) IP66
Degree of protection (NEMA) (EF011959) 4X, 13

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
