> EATON - MOELLER > Auxiliary Control and Signalling Elements > 187100

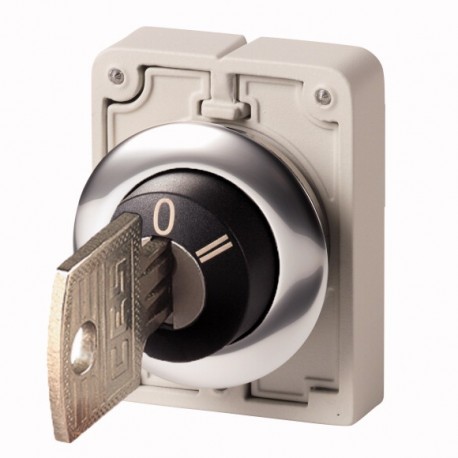

EATON - MOELLER M30C-FWRS3-SA(*)-* M30C-FWRS3-SA(*)-* 187100 Y7-187100 EATON ELECTRIC Key-operated actuators, Flat Front, suitable for master k.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

M30C-FWRS3-SA(*)-* 187100 Y7-187100 EATON ELECTRIC Key-operated actuators, Flat Front, suitable for master k..

M30C-FWRS3-SA(*)-*

187100

Y7-187100

EATON - MOELLER

1 Pcs.

Key-operated actuators, Flat Front, suitable for master key systems, 3 positions, maintained M30C-FWRS3-SA(*)-* Key-operated actuator, Flat Front, maintained, 3 positions 0, Metal bezel, Suitable for master key systems

Automation > Front element for selector switch
Auxiliary Control and Signalling Elements

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Key-operated actuator, Flat Front, maintained, 3 positions 0, Metal bezel, Suitable for master key systems
Key-operated actuator, Product range: RMQ-Titan, Single unit, Design: key operation lock mechanism, maintained, Suitable for master key systems, 3 positions, Degree of Protection: IP64, Metal bezel, Connection to SmartWire-DT: yes, with SWD-RMQ connections, Front dimensions: Ø 36 mm, with two keys, Standards: IEC/EN 60947, VDE 0660, Degree of Protection: IP64

Delivery program

Product range
Flat Front (drilling dimensions 30.5 mm)
Basic function
Key-operated buttons
Mounting hole diameter [⌀]
30.5 mm
Single unit/Complete unit
Single unit
Design
key operation lock mechanism
maintained
Function: [= spring-return]
60° ⥥ 60°
Suitable for master key systems
3 positions
Key withdrawable in position
0
Degree of Protection
IP64
Front ring
Metal bezel
Connection to SmartWire-DT
yes
with SWD-RMQ connections
Information about equipment supplied
with two keys

Technical data

General
Standards
IEC/EN 60947
VDE 0660
Lifespan, mechanical [Operations]
> 0.1 x 106
Operating frequency [Operations/h]
≦ 100
Operating torque
≦ 0.5 Nm
Climatic proofing
Damp heat, constant, to IEC 60068-2-78
Damp heat, cyclic, to IEC 60068-2-30
Degree of Protection
IP64
Ambient temperatureOpen
-25 - +70 °C
Mounting position
As required
Mechanical shock resistance
15
Shock duration 11 ms
Sinusoidal
according to IEC 60068-2-27 g
shipping classification
DNV
GL
0000SPC-1830000SPC-180

Design verification as per IEC/EN 61439

Operating ambient temperature min.
-25 °C
Operating ambient temperature max.
+70 °C

Technical data ETIM 7.0

Low-voltage industrial components (EG000017) / Front element for selector switch (EC000222)
Electric engineering, automation, process control engineering / Low-voltage switch technology / Command and alarm device / Front element for selector switches ([email protected] [AKF031014])
Number of switch positions
3
Type of control element
Key
Suitable for illumination
No
Colour control element
Black
Colour indicator light cap
Other
Construction type lens
Round
Hole diameter
30 mm
Width opening
0 mm
Height opening
0 mm
Switching function latching
Yes
Spring-return
No
With front ring
Yes
Material front ring
Metal
Colour front ring
Chrome
Degree of protection (IP), front side
IP64
Degree of protection (NEMA)
Other

Approvals

Product Standards
IEC/EN 60947-5; UL 508; CSA-C22.2 No. 14-05; CSA-C22.2 No. 94-91; CE marking
UL File No.
E29184
UL Category Control No.
NKCR
CSA File No.
012528
CSA Class No.
3211-03
North America Certification
UL listed, CSA certified
Degree of Protection
UL/CSA Type 3R, 4X, 12, 13

Dimensions

1160DIM-155
1160DIM-169
with 2 M22-K… standard contact elements
1160DIM-170
with M22-FK… flat rear contact elements
1160DIM-184
