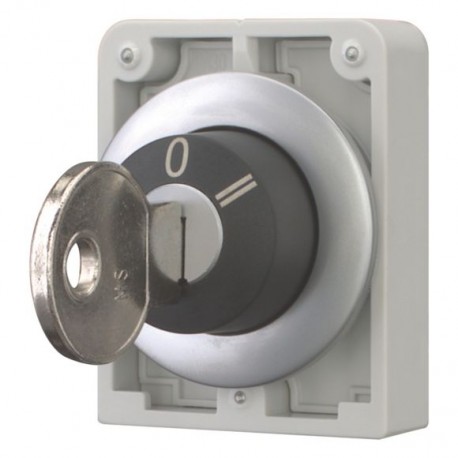

EATON - MOELLER M30C-FWRS3-A* M30C-FWRS3-A* 187095 Y7-187095 EATON ELECTRIC Key-operated actuators, Flat Front, not suitable for master ke.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

M30C-FWRS3-A* 187095 Y7-187095 EATON ELECTRIC Key-operated actuators, Flat Front, not suitable for master ke..

M30C-FWRS3-A*

187095

Y7-187095

EATON - MOELLER

1 Pcs.

Key-operated actuators, Flat Front, not suitable for master key systems, 3 positions, maintained M30C-FWRS3-A* Eaton Moeller® series M30 Key-operated actuator, Flat Front, maintained, 3 positions: Key withdrawable: selectable, Metal bezel Key-operated actuator, Product range: RMQ-Titan, Single unit, Design: key operation lock mechanism, maintained, Not suitable for master key systems, 3 positions, selectable, Degree of Protection: IP64, Metal bezel, Connection to SmartWire-DT: yes, with SWD-RMQ connections, Front dimensions: Ø 36 mm, Instructions: Stay-put/spring-return function, can be changed with coding parts M22-XC-Y, Key withdraw convertible with coding adapters M22-XC-..., with plunger bridge for the middle contact, With 1 key, Standards: IEC/EN 60947, VDE 0660, Degree of Protection: IP64

Automation > Front element for selector switch
Auxiliary Control and Signalling Elements

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Eaton Moeller M30C-FWRS3-A* key-operated actuator provides secure, restricted access switching for industrial control panels and operator consoles. Maintenance staff and machine operators rely on keyed actuators to change operating modes safely without risking accidental engagement by unauthorized personnel.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Number of switch positions (EF000231): 3
  • Type of control element (EF006976): Key
  • Suitable for lighting (EF001142): No
  • Colour control element (EF007167): Black
  • Construction type lens (EF006253): Round
  • Hole diameter (EF000079): 30 mm
  • Width opening (EF004565): 0 mm
  • Height opening (EF004778): 0 mm
  • Switching function latching (EF007447): Yes
  • Spring-return (EF001407): No
  • With front ring (EF006014): Yes
  • Material front ring (EF005972): Metal
  • Colour front ring (EF002429): Chrome
  • Degree of protection (IP), front side (EF003118): IP64
  • Degree of protection (NEMA) (EF011959): 4X, 13

More info

▲

General specifications

Product Name
Eaton Moeller® series M30 Key-operated actuator
Catalog Number
187095
Model Code
M30C-FWRS3-A*
Product Length/Depth
36 mm
Product Height
67 mm
Product Width
46 mm
Product Weight
0.06 kg
Certifications
IEC/EN 60947
VDE 0660

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
