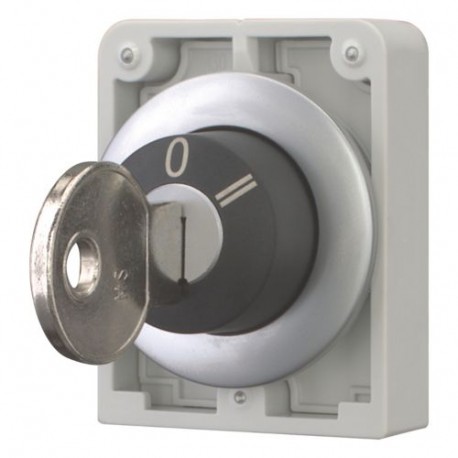

EATON - MOELLER M30C-FWRS3 M30C-FWRS3 187094 Y7-187094 EATON ELECTRIC Key-operated actuators, Flat Front, not suitable for master key s.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

M30C-FWRS3 187094 Y7-187094 EATON ELECTRIC Key-operated actuators, Flat Front, not suitable for master key s..

M30C-FWRS3

187094

Y7-187094

EATON - MOELLER

1 Pcs.

Key-operated actuators, Flat Front, not suitable for master key systems, 3 positions, maintained M30C-FWRS3 Eaton Moeller® series M30 Key-operated actuator, Flat Front, maintained, 3 positions, Key withdrawable: I, 0, II, Metal bezel Key-operated actuator, Product range: RMQ-Titan, Single unit, Design: key operation lock mechanism, maintained, Not suitable for master key systems, 3 positions, I, II, Degree of Protection: IP64, Metal bezel, Connection to SmartWire-DT: yes, with SWD-RMQ connections, Front dimensions: Ø 36 mm, Instructions: Stay-put/spring-return function, can be changed with coding parts M22-XC-Y, Key withdraw convertible with coding adapters M22-XC-..., with plunger bridge for the middle contact, With 1 key, Standards: IEC/EN 60947, VDE 0660, Degree of Protection: IP64

Automation > Front element for selector switch
Auxiliary Control and Signalling Elements

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

General specifications

Product Name
Eaton Moeller® series M30 Key-operated actuator
Catalog Number
187094
Model Code
M30C-FWRS3
EAN
4015081821501
Product Length/Depth
36 mm
Product Height
67 mm
Product Width
46 mm
Product Weight
0.06 kg
Warranty
Certifications
IEC/EN 60947
VDE 0660
CSA file No. 012528
CSA Class No.: 3211-03
DNV
UL File No.: E29184
GL
IEC/EN 60947-5
UL 508
CSA-C22.2 No. 14-05
CSA-C22.2 No. 94-91
CE marking
UL Category Control No.: NKCR
UL Listed
CSA certified

ETIM for 187094 Low-voltage industrial controls and switchgear (EC000222)
Feature Name Feature Value
Number of switch positions (EF000231) 3
Type of control element (EF006976) Key
Suitable for lighting (EF001142) No
Colour control element (EF007167) Black
Colour indicator light cap (EF007165) Other
Construction type lens (EF006253) Round
Hole diameter (EF000079) 30 mm
Width opening (EF004565) 0 mm
Height opening (EF004778) 0 mm
Switching function latching (EF007447) Yes
Spring-return (EF001407) No
With front ring (EF006014) Yes
Material front ring (EF005972) Metal
Colour front ring (EF002429) Chrome
Degree of protection (IP), front side (EF003118) IP64
Degree of protection (NEMA) (EF011959) 4X, 13
