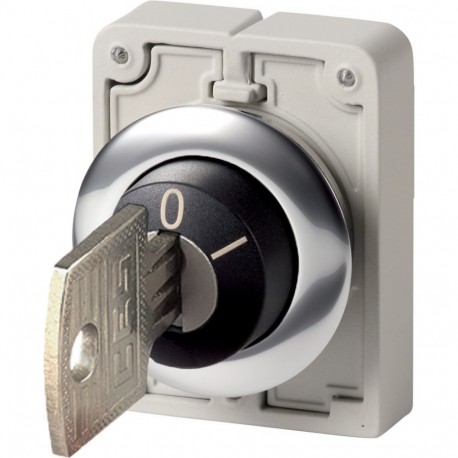

EATON - MOELLER M30C-FWRS-SA(*)-* M30C-FWRS-SA(*)-* 187064 Y7-187064 EATON ELECTRIC Key-operated actuators, Flat Front, suitable for master ke.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

M30C-FWRS-SA(*)-* 187064 Y7-187064 EATON ELECTRIC Key-operated actuators, Flat Front, suitable for master ke..

M30C-FWRS-SA(*)-*

187064

Y7-187064

EATON - MOELLER

1 Pcs.

Key-operated actuators, Flat Front, suitable for master key systems, 2 positions, maintained M30C-FWRS-SA(*)-* Key-operated actuator, Flat Front, maintained, 2 positions 0, Metal bezel, Suitable for master key systems Key-operated actuator, Product range: RMQ-Titan, Single unit, Design: key operation lock mechanism, maintained, Suitable for master key systems, 2 positions, Degree of Protection: IP64, Metal bezel, Connection to SmartWire-DT: yes, with SWD-RMQ connections, Front dimensions: Ø 36 mm, with two keys, Standards: IEC/EN 60947, VDE 0660, Degree of Protection: IP64

Automation > Front element for selector switch
Auxiliary Control and Signalling Elements

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A key-operated actuator like the Eaton Moeller M30C-FWRS-SA(*)-* provides secure manual control access on industrial control panels, ensuring that only authorized personnel can change operational modes or initiate specific machine cycles. These robust operators are typically installed on electrical enclosures and machine interfaces where unauthorized switching must be prevented. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Number of switch positions (EF000231): 2
  • Type of control element (EF006976): Key
  • Suitable for lighting (EF001142): No
  • Colour control element (EF007167): Black
  • Construction type lens (EF006253): Round
  • Hole diameter (EF000079): 30 mm
  • Width opening (EF004565): 0 mm
  • Height opening (EF004778): 0 mm
  • Switching function latching (EF007447): Yes
  • Spring-return (EF001407): No
  • With front ring (EF006014): Yes
  • Material front ring (EF005972): Metal
  • Colour front ring (EF002429): Chrome
  • Degree of protection (IP), front side (EF003118): IP66
  • Degree of protection (NEMA) (EF011959): 4X, 13

More info

▲
Key-operated actuator, Flat Front, maintained, 2 positions 0, Metal bezel, Suitable for master key systems
Key-operated actuator, Product range: RMQ-Titan, Single unit, Design: key operation lock mechanism, maintained, Suitable for master key systems, 2 positions, Degree of Protection: IP64, Metal bezel, Connection to SmartWire-DT: yes, with SWD-RMQ connections, Front dimensions: Ø 36 mm, with two keys, Standards: IEC/EN 60947, VDE 0660, Degree of Protection: IP64

Delivery program

Product range
Flat Front (drilling dimensions 30.5 mm)
Basic function
Key-operated buttons
Mounting hole diameter [⌀]
30.5 mm
Single unit/Complete unit
Single unit
Design
key operation lock mechanism
maintained
Function: [= spring-return]
60°
Suitable for master key systems
2 positions
Key withdrawable in position
0
Degree of Protection
IP66
Front ring
Metal bezel
Connection to SmartWire-DT
yes
with SWD-RMQ connections
Information about equipment supplied
with two keys

Technical data

General
Standards
IEC/EN 60947
VDE 0660
Lifespan, mechanical [Operations]
> 0.1 x 106
Operating frequency [Operations/h]
≦ 100
Operating torque
≦ 0.5 Nm
Climatic proofing
Damp heat, constant, to IEC 60068-2-78
Damp heat, cyclic, to IEC 60068-2-30
Degree of Protection
IP66
Ambient temperatureOpen
-25 - +70 °C
Mounting position
As required
Mechanical shock resistance
15
Shock duration 11 ms
Sinusoidal
according to IEC 60068-2-27 g
shipping classification
DNV
GL

Design verification as per IEC/EN 61439

Operating ambient temperature min.
-25 °C
Operating ambient temperature max.
+70 °C

Technical data ETIM 7.0

Low-voltage industrial components (EG000017) / Front element for selector switch (EC000222)
Electric engineering, automation, process control engineering / Low-voltage switch technology / Command and alarm device / Front element for selector switches ([email protected] [AKF031014])
Number of switch positions
2
Type of control element
Key
Suitable for illumination
No
Colour control element
Black
Colour indicator light cap
Other
Construction type lens
Round
Hole diameter
30 mm
Width opening
0 mm
Height opening
0 mm
Switching function latching
Yes
Spring-return
No
With front ring
Yes
Material front ring
Metal
Colour front ring
Chrome
Degree of protection (IP), front side
IP66
Degree of protection (NEMA)
Other

Approvals

Product Standards
IEC/EN 60947-5; UL 508; CSA-C22.2 No. 14-05; CSA-C22.2 No. 94-91; CE marking
UL File No.
E29184
UL Category Control No.
NKCR
CSA File No.
012528
CSA Class No.
3211-03
North America Certification
UL listed, CSA certified
Degree of Protection
UL/CSA Type 3R, 4X, 12, 13

Dimensions

with 2 M22-K… standard contact elements
with M22-FK… flat rear contact elements
